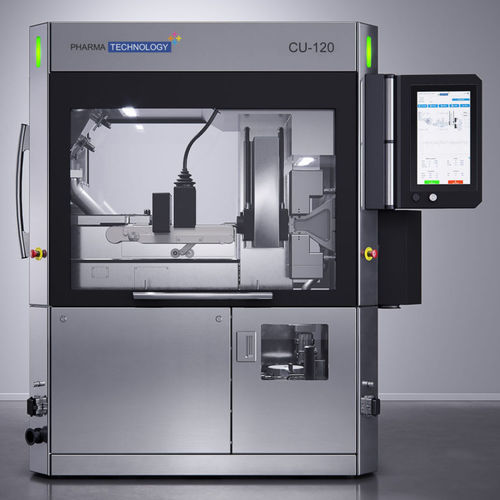

Near-infrared inspection system CU-120

massautomaticquality

Overview
The CU-120 provides real-time Content Uniformity analysis and can reject 100% of non-compliant tablets inline. Each tablet is inspected by a multipoint NIR-SRS (Near-Infrared Spatially Resolved Spectroscopy) probe to predict API concentration, while a 3D microwave resonator performs contactless individual weight measurement, enabling non-destructive high-throughput monitoring.

Embedded technologies

• Multipoint NIR-SRS spectroscopy for per-tablet real-time API concentration prediction
• 3D microwave resonator for contactless individual weight measurement
• Encapsulated weigh cell or 4-parameter tester for weight, thickness, hardness and diameter
• Automatic calibration via linear regression to maintain measurement precision

Key benefits

• 100% Content Uniformity testing on production lines
• Enables Real Time Decision (RTD) for release and rejects
• Suitable for final quality proving in batch or contract manufacturing
• Reduces time and effort in reject strategy and batch disposition
• Supports conventional sampling tests for physical tablet attributes (weight, thickness, hardness, diameter)
• Inspection for batch recovery, global batch quality verification and counterfeit detection

Real-time control and reporting
By combining NIR-SRS spectroscopy and microwave weighing, the CU-120 delivers Content Uniformity results in real time and can trigger inline rejection of non-compliant units. Results are processed by high-speed processors and logged in CFR 21 Part 11-compliant software. The HMI supports guided operation and data export via USB or system integration through OPC UA.

Designed for manufacturing and R&D
Built for production environments and R&D labs, the CU-120 features fast format changeovers, low maintenance, high configurability, CE certification and a complete documentation package. It is suitable for batch recovery, mix-up detection and counterfeit prevention, with optional support for chemometric model development.

Technical specifications

• Maximum inspection speed: 120,000 tabs/h
• Minimum product width: 6 mm
• Maximum product width: 24 mm
• Maximum product height: 9 mm
• Weighing range: 200 mg to 2000 mg
• 3D mass measurement accuracy: +/- 1 mg (3 Sigma)
• Air extraction: Integrated HEPA filter H13
• Requested compressed air: Min 500 L/min - Min. 6 bar
• Noise level: <70 dB(A)
• Power supply: 380 V 3ph + N + PE
• Frequency: 50 Hz / 60 Hz
• Non-metallic contact parts: FDA approved
• Product type: Tablet
• Function: Quality control
• Containment level: Dust tight
• Application area: R&D, Manufacturing
• Product range: Q-Control
