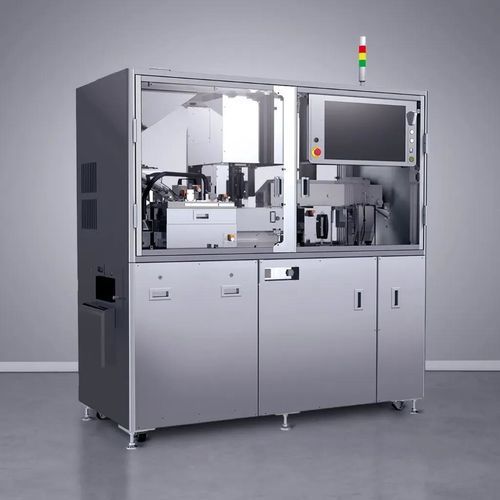

Optical inspection machine T/CVIS-NSRvisualvideofor medical tablets
Add to favorites
Compare this product
Characteristics
- Technology
- optical, visual, video
- Applications
- for medical tablets, for capsules
- Sector
- for the pharmaceutical industry
- Other characteristics
- automatic, high-speed, high-throughput, sorting, belt conveyor
- Inspection range width
Min.: 5 mm
(0 in)Max.: 12 mm
(0 in)- Inspection range height
Min.: 2 mm
(0 in)Max.: 12 mm
(0 in)
Description
Product overview
The Viswill T/CVIS-NSR inspection system automatically inspects 360° of product surfaces for tablets and capsules at speeds up to 300,000 tablets/hour and 125,000 capsules/hour. Products are positioned reproducibly on a vacuum conveying belt and imaged by multiple cameras. The system applies advanced image analysis to detect visual defects and incorporates a fail-safe active sorting mechanism for automatic rejection of non-conforming units.
Key benefits
Features
The system uses synchronized multi-camera imaging to capture the full 360° surface of each unit. A vacuum conveying belt ensures reproducible product orientation for consistent inspection results. The fail-safe active sorting mechanism provides reliable rejection of defects and traceable reject confirmation. The graphical user interface simplifies recipe setup and operation, reducing commissioning and training time when introducing new products.
Specifications
Maximum inspection speed: 300,000 tablets/h; 125,000 capsules/h
Minimum product width: 5 mm
Maximum product width: 12 mm
Minimum product height: 2 mm
Maximum product height: 12 mm
Product type: Tablet, Capsule
Function: Quality control
Application Area: Manufacturing
Product Range: Q-Control
Technical specifications
The Viswill T/CVIS-NSR inspection system automatically inspects 360° of product surfaces for tablets and capsules at speeds up to 300,000 tablets/hour and 125,000 capsules/hour. Products are positioned reproducibly on a vacuum conveying belt and imaged by multiple cameras. The system applies advanced image analysis to detect visual defects and incorporates a fail-safe active sorting mechanism for automatic rejection of non-conforming units.
Key benefits
- 360° surface inspection with multi-camera coverage
- High sensitivity to colour deviations
- Accurate detection of print/embossing defects
- Intuitive graphical user interface for fast setup
- Inspection capacity up to 300,000 tablets/hour, 125,000 capsules/hour
- Supports a wide range of product sizes
- Reliable active sorting with reject confirmation
- Ergonomic design and straightforward changeover
- Local European support and service
- European spare parts inventory
- Large installed base worldwide
Features
The system uses synchronized multi-camera imaging to capture the full 360° surface of each unit. A vacuum conveying belt ensures reproducible product orientation for consistent inspection results. The fail-safe active sorting mechanism provides reliable rejection of defects and traceable reject confirmation. The graphical user interface simplifies recipe setup and operation, reducing commissioning and training time when introducing new products.
Specifications
Maximum inspection speed: 300,000 tablets/h; 125,000 capsules/h
Minimum product width: 5 mm
Maximum product width: 12 mm
Minimum product height: 2 mm
Maximum product height: 12 mm
Product type: Tablet, Capsule
Function: Quality control
Application Area: Manufacturing
Product Range: Q-Control
Technical specifications
- Maximum inspection speed: 300,000 tablets/h; 125,000 capsules/h
- Minimum product width: 5 mm
- Maximum product width: 12 mm
- Minimum product height: 2 mm
- Maximum product height: 12 mm
- Product types supported: Tablet, Capsule
- Primary function: Quality control
- Application area: Manufacturing
- Product range: Q-Control
