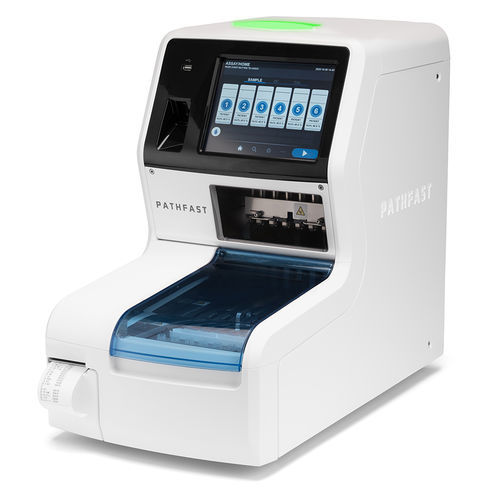

Blood analyzer PATHFAST™ TYPE E

for blood plasmafor serumlaboratory

Product summary PATHFAST™ TYPE E is a compact, fast chemiluminescence enzyme immunoassay (CLEIA) analyzer designed for point-of-care quantitative testing using whole blood, plasma, serum and, for TB LAM Ag, LAM extract/sputum. The system delivers laboratory-correlated results with a small footprint suitable for laboratories, hospitals and medical offices.

Key features

• All-in-one single-use reagent cartridges (no additional reagents required)
• Six parallel channels: up to 6 samples or parameters per run
• Fast throughput: typically <17 minutes for 6 samples for critical care/sepsis/TB LAM Ag workflows
• Supported sample types: whole blood, plasma, serum (and LAM extract/sputum for TB LAM Ag)
• Simple sample-to-result workflow: load sample into cartridge → place rack into analyzer → start assay

Design & usability

• Modern ergonomic desktop design with wide-opening door for easy cartridge/rack access
• 8.4-inch LCD touchscreen for intuitive operation
• Built-in barcode scanner and integrated printer
• USB port for data transfer and maintenance hatch
• Three-color 360° status indicator for simple operational monitoring

Principle & precision PATHFAST™ combines CLEIA with Magtration® technology to provide high accuracy and precision using small sample volumes and to ensure reproducible results that correlate with laboratory analyses.

Available biomarkers & applications PATHFAST™ supports a broad test menu for emergency care, critical care, sepsis diagnostics and tuberculosis.

• Emergency care: high-sensitivity troponin (hs‑cTnI), myoglobin (Myo), CK‑MB, D‑Dimer, NT‑proBNP, hsCRP, HCG‑Preg
• Sepsis: Presepsin, B.R.A.H.M.S PCT
• Tuberculosis: TB LAM Ag (LAM extract / sputum workflow)

Technical specifications

• External dimensions: W320 × D586 × H524 mm
• Weight: 32 kg
• Instrument type: Desktop immunoassay analyzer
• Throughput: Up to 6 samples or parameters per run
• Measuring time: <17 minutes for 6 samples
• Sampling material: LAM extract, whole blood, plasma, serum
• Measuring principle: CLEIA with Magtration® technology
• Reaction temperature: 37 °C
• Sample volume: 100 µL
• Data storage: Patient data: 1,000; QC data: 1,800; CAL data: 300
• Data transfer: ASTM and fixed standard
• Electrical requirements: 100 - 240 V AC (50/60 Hz)
• Power consumption: 360 VA
• Monitor / keyboard: 8.4-inch LCD touchscreen
• Printer: Integrated
• PC: Integrated; handheld barcode reader included
• Interface: RS-232C and Ethernet port
• Calibration: Factory calibration; 2-point calibration every 4 weeks
• 24-h operation (stand-by): Recommended
