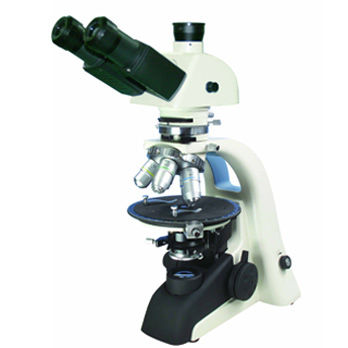

Polarizing microscope PH100-PG series

opticalinspectionfor research

PH100-PG series polarizing microscope adopt ergonomic design, with simple polarizing device, convenient to operation, can be used to research transparent illumination. It is widely used in the research and inspection of geology, chemical industry, medical treatment, medicine, and other fields. It can also observe the crystal phase of liquid polymer materials, biopolymers and liquid crystal materials. It is ideal instrument for research and teaching in scientific research institutions and universities. ● Condenser Polarized condenser: NA.0.85, aperture adjustable, up and down 360°rotatable, 0,30,45,90,180,270,315 degree grade ● Objective The center of the objective can be adjusted ● Analyzer Built-in analyzer,normal observation and polarized light observation can be freely switched,90 degree rotatable with scale. Rotary bertrand lens ,height and center adjustable ● Large stage Rotatable stage, 360degree scale, grid: 6’ centre adjustable with lock unit,Dia of circle stage: 160mm ● Compensator 3pcs, λCompensator, λ/4 Compensator, Quartz Wedge Compensator
