Polarizing microscope PH-PG3230

opticalbiomedicalfor research

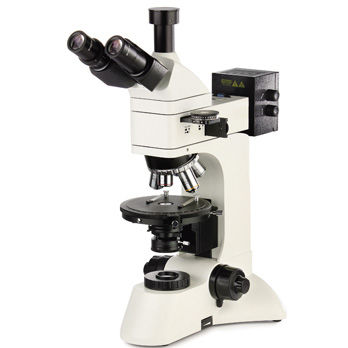

PH-PG3230 transmitted & reflected polarizing microscope，adopt infinity optical system, equipped with strain-free plan achromatic objective, is utilized polarizing light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation. It is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is an ideal instrument for scientific research and universities . Product Features: ▲ Adopt infinity optical system and modularization function design. ▲ Infinity long W.D plan objectives, the field of view is widely and clear. ▲ Wide-field plan eyepieces: field number Ф22mm. ▲Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. ▲Polarizing unit can be move out or into optical path, polarizer and analyzer can be rotated from 0°to 360°. ▲Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6undefined center adjustable and with tightener Stage vertical effective movement up to 30mm. ▲Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness adjustable. ▲Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography. Product Details: ● Observation system Compensation observation tube: trinocular , single diopter adjustable, inclined 30° , 100% light transmission photography, can be connected to the camera.
