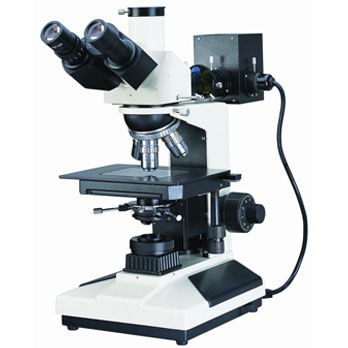

Metallurgical microscope PH-M2030

opticalfor researchfor teaching

PH-M2030 reflected and transimitted metallurgical microscopes are suitable to observe the surfaces of non-transparent object or transparent object.They are equipped with vertical illuminator and tramsmitted illuminator,plan achromatic objectives with long working distance(no cover glass),wide-field eyepieces and set polarizer device in trinocular.They provide clear and high-contrast picture,convient operation and etc.They are the ideal instruments for research work in metallography,precision engineering,electronics and etc.They are suitable for scientific research,teaching demonstration in the colleges and factory. Performance Characteristics ▲Configure large-field eyepieces and long distance plan achromatic objectives (no cover glass ), large and clear view field . ▲ Coaxial coarse and fine focusing knob, coarse elastic adjustable, with locking and limit device, fine focusing range: 2μm. ▲Equipped with two sets of illumination systems, it can be used for microscopic observation of opaque or transparent objects. ▲6V20W halogen lamp，brightness adjustable . ▲Trinocular tube, which can switch between normal observation and polarized light observation, and can perform 100% light transmission photography. Product details: ● Observation system Compensation observation tube: trinocular, single diopter adjustable, 30° inclined, can be connected to the camera. ● Eyepiece WF10X wide field plan eyepieces, field Φ18mm, can provide expanse and smooth observation space. ● Mechanical stage Double-layer mechanical stage, size: 185mmX140mm; moving range: 75mmX50mm, moderate design concept, it is more convenient and comfortable for users to operate the stage.
