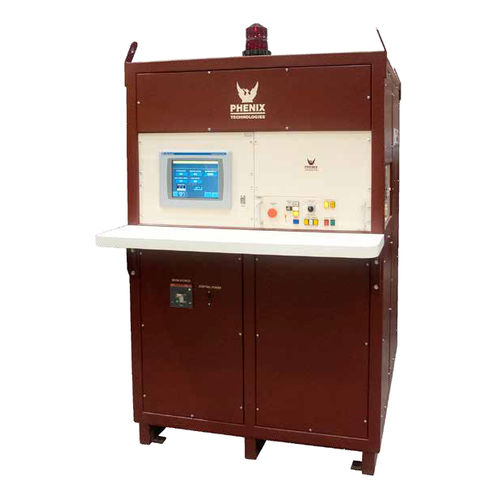

Transformer testing device TTSxxxx series

currentresistanceloss

Ensure that a transformer meets performance and reliability requirements, from the production line to after a repair or upgrade, when a major disruptive event occurs such as a lightning strike, or for preventive/predictive maintenance. Phenix Technologies manufactures a complete line of Transformer Test Systems equipped with the testing capabilities you require. Single- and Three-Phase Precision Measurement Systems with Electronic Power Supply Optional system components for additional testing capabilities Semi- or Fully-Automated High Speed Testing, 200+ transformers per day Fully Integrated Data Collection and Reporting System Perform the following tests on distribution and power transformers in accordance with IEC 60076 and ANSI / IEEE C57.12 standards. Excitation Current Measurement Impedance Voltage Measurement Copper Loss (Load Loss) Applied Potential Test Winding Resistance Measurement Insulation Resistance Excitation Loss (No-Load or Core Loss) Full Load Current Measurement Temperature Measurement (Heat Run) Induced Potential Test Turns Ratio and Phase Displacement
