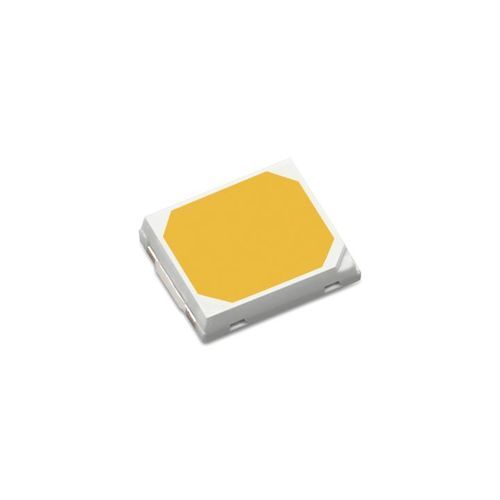

Colored LED LUXEON 2835 Commercial Visual Consistency

rectangularSMDlighting

Overview
LUXEON 2835 Commercial Visual Consistency is a mid-power SMD LED family in the industry-standard 2835 footprint designed for architectural and commercial lighting projects that require tight visual and color uniformity. The family offers single-color binning, optional single V_F bins at defined test currents, and a second-sorting process that supports stable color during deep dimming down to 1% where specified.

Features & Benefits

• Single V_F bins — ensures string-to-string forward-voltage uniformity for consistent output across large installations
• Broad CCT and high-CRI options — available in common CCTs (2700K–6500K) with CRI 80 and 90 variants
• KSF and non-KSF phosphor choices — selectable phosphors for tailored color rendering
• Specialized deep-dimming bins — engineered for smooth, stable dimming performance down to 1%
• Industry-standard 2835 footprint — drop-in compatibility for retrofit and new designs
• Optimized luminous efficacy — competitive lm/W and lm/$ for cost-effective system design
• Single 3-step MacAdam ellipse (3 SDCM) — tight chromatic control for visual consistency
• High maximum ratings and LM-80 documentation — simplifies development and certification

Product Performance (selected table rows)
Voltage | Nominal CCT | Min CRI | Luminous Flux Min (lm) | Luminous Flux Typ (lm) | Typical Efficacy (lm/W) | Test Current (mA) | V_F Width per bin | Part Number
3V | 2700K | 80 | 31.6 | 34.0 | 190.9 | 65 | 0.1V | L128-2780SA35AV0D5
3V | 3000K | 80 | 32.4 | 34.8 | 195.4 | 65 | 0.1V | L128-3080SA35AV0D5
3V | 4000K | 80 | 33.8 | 36.3 | 203.8 | 65 | 0.1V | L128-4080SA35AV0D5
9V | 4000K | 80 | 131.0 | 138.2 | 153.5 | 100 | 0.4V | L128-4080SC35DV0B5
18V | 4000K | 80 | 147.6 | 152.2 | 172.0 | 50 | 0.5V | L128-4080SE35BV0A5
Note: the full product performance table contains many CCT/CRI/part-number permutations across 3V, 9V and 18V groups as well as deep-dimming and standard bins — consult the official datasheet for the exhaustive list of part numbers and test-condition rows.

Technical specifications

• Package: industry-standard 2835 (mid-power SMD)
• Product family: LUXEON 2835 Commercial Visual Consistency
• Color control: single 3-step MacAdam ellipse (3 SDCM) options
• Binning: single V_F bins available; multiple V_F bin widths depending on voltage group (examples: 0.1V, 0.4V, 0.5V)
• CCT examples: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
• CRI options: CRI 80 and CRI 90 variants
• Drive/test currents: typical examples include 65 mA (3V group), 100 mA (9V group), 50 mA (18V group)
• Typical efficacy: see per‑CCT values in product performance table
• Deep dimming: specialized bins and second-sorting enable stable color performance down to 1% for supported variants
• Phosphor options: KSF and non-KSF choices for enhanced color rendering
• Design-in benefits: drop-in 2835 footprint for faster development and reduced time-to-market
• Documentation: LM-80 and reliability/datasheet support available for certification and product development
