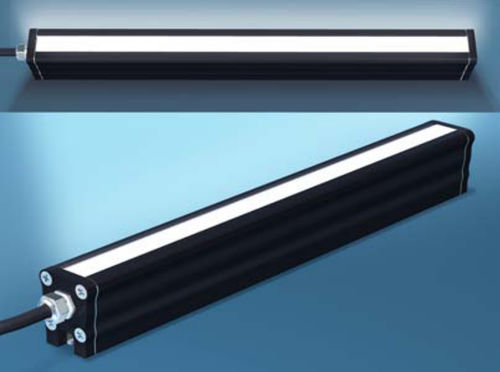

PHLOX® LINEAR LIGHT
Ultimate linear lighting for high speed & large surface inspection, web inpection…
Linear lights by PHLOX® offer the best life cycle, the best chromaticity stability and the best luminance on the market, all in an ultra compact aluminium body.
• Available in 18 standard sizes (useful mm): from 64 to 526mm x 31 x 24.5mm
X = 64 | 91 | 118 | 145 | 172 | 199 | 227 | 254 | 281 | 308 | 335 | 362 | 389 | 416 | 443 | 470 | 497 | 526
• Available in 19 standard sizes (useful inches): from 2.56 to 21.8 x 1.22 x 0.96"
X =2.51 | 3.58 | 4.65 | 5.70 | 6.77 | 7.83 | 8.93 | 10.00 | 11.06 | 12.12 | 13.19 | 14.25 | 15.32 | 16,38 | 17.44 | 18.50 | 19.56 | 20.71
• Luminance ≥350.000 cd/m2 (1)
• Uniformity ≥90% (±10%) (1)
• Colour Temp. 5.700°K (± 500)
• IR Wavelength: 850 nm
• Red Wavelength: 630 nm
• All sizes possible up to 1.7 linear meter / 5.57 linear feet
• Standard colours: White + Red + IR
• Custom colours available: Green + Blue + UV + RGB
• IP40 (IP65 on request)
• Expected life > 100.000 hours
(1) continuous mode
Each PHLOX® Linear light is provided with:
- 24 months warranty
