Scientific vision camera FASTCAM Mini CXHDfor the automotive industryfor vehicles

scientific vision camera
scientific vision camera
scientific vision camera
Add to favorites
Compare this product
indicative price

Characteristics

Function
scientific vision
Technology
HD
Applications
for the automotive industry, for vehicles
Spectrum
full-color, monochrome
Sensor
CMOS
Interface
HDMI
Other characteristics
high-speed, lightweight, compact

Description

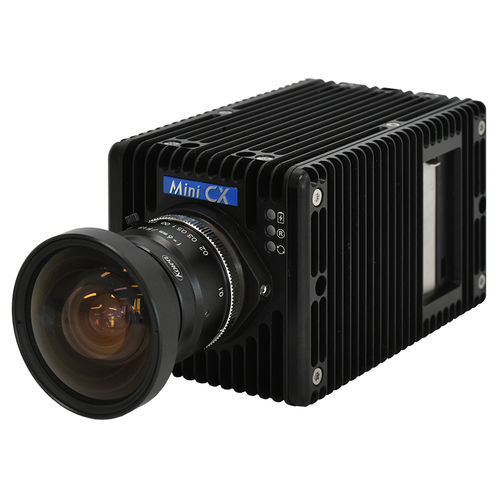

Designed for both on-board and off-board vehicle safety testing, the FASTCAM Mini CX camera delivers an exceptional combination of resolution, frame rate, light sensitivity and durability in a compact, standalone package. With 1080 HD resolution at 1,000 frame per second and an industry leading light sensitivity of ISO 5,000 color and ISO 10,000 monochrome, the Mini CX provides outstanding image quality. Well suited for the space limited locations and High-G operating environments common to automotive safety testing as well as certain military/defense applications, the Mini CX is Photron’s smallest, lightest and – with operational testing to 150G – most rugged standalone camera. Additional features add to the usability of the Mini CX. For instance, HDMI video output allows easy local focusing of the camera. An internal battery offers 30 minutes of camera operation if the primary power source fails during a test. Rapid download to nonvolatile memory ensures protection for recorded images. A built-in accelerometer provides a backup trigger source. Key features Megapixel CMOS Sensor: 1920 x 1080 pixels at 1,000fps 1280 x 800 pixels at 2,000fps 1280 x 256 pixels at 5,000fps Class Leading Light Sensitivity: ISO 12232 Ssat Standard ISO 5,000 color ISO 10,000 monochrome Global Electronic Shutter: 4μs independent of frame rate Dynamic Range (ADC): 30-bit color 10-bit monochrome Compact and Lightweight: 75mm (H) x 75mm (W) x 123.5 mm (D) 2.95” (H) x 2.95” (W) x 4.86” (D) Weight: 1.2Kg ( 2.6lbs.) Internal Recording Memory: 8GB
