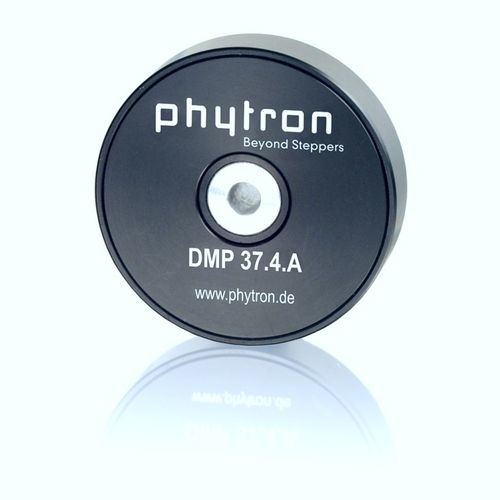

Rotary damper DMP 20 / 29 / 37
mechanicalfor stepper motorsfor optical equipement

Rotary damper - DMP 20 / 29 / 37 - Phytron GmbH - mechanical / for stepper motors / for optical equipement

Add to favorites

Compare this product

Characteristics

Function: rotary
Technology: mechanical
Applications: for stepper motors, for optical equipement, ISO base
Material: aluminium
Other characteristics: custom-made
Diameter: 20 mm, 29 mm, 37 mm
(0.8 in, 1.1 in, 1.5 in)

Description

The reliable damping component without loss of torque DMP 20, 29 and 37, Phytron´s inertial dampers improve the system´s characteristics of stepper motor applications, by reducing the settling times and by suppression of system resonances impressively. The dampers are designed for stepper motors size 25 (NEMA 11), 32 (NEMA 14) and 37 (NEMA 17) with second shaft, used in optical applications or other sensitive environments. • Inertial damper for stepper motors with double shaft of size 25 / 32 / 42 (NEMA 11 / 14 / 17) • Mounts onto motor shaft • Material: Aluminium / plastic • Diameter: 2.5, 3, 4, 5 mm or customized • Headless screws for mounting ISO 4027 (DIN 914/A2) • Environmental conditions: Ambient temperature 0 to +60 °C Storage temperature -20 to +70 °C • Protection class IP 62 (IEC 34)
