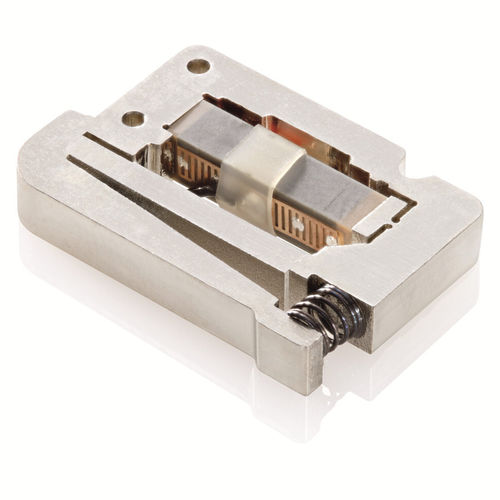

Linear piezoelectric actuator P-604.300

0 V...10 V10 V...50 V101 V...300 V

Inexpensive, with 300 µm Travel Range • Light and compact: 4 g and <13 mm × 20 mm surface • Travel range 300 µm • Optimized design for manufacturing in large quantities • Customer-specific adaptations can be provided • Outstanding lifetime due to PICMA® piezo actuators • Ideal for OEM applications in optics, medical technology, biotechnology, and microfluidics Application fields • Nanopositioning • High-speed switching • Patch clamp • Microdispensing • Adaptive systems technology / automation • Photonics / integrated optics • Biotechnology High guiding accuracy due to zero-play flexure guides Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range. Outstanding lifetime thanks to PICMA® piezo actuators The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
