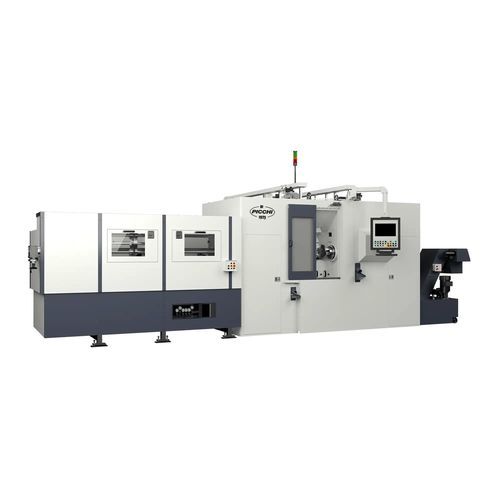

3-axis CNC machining center T12-U18

horizontalHSK-63ISO 40

Product overview
Combybar T12-U18 Picchi is a high-productivity CNC multispindle bar machining center designed for efficient machining of long, thin and complex-section bars. The machine integrates independent spindle tooling, an integrated bar loader and a Direct-Drive rotary table to deliver short cycle times and high process repeatability.

Product family

• Combybar

Key features

• CNC multispindle bar machining center optimized for long, thin parts
• 12 stations and up to 19 independent spindles
• Integrated bar loader for 3–6 m bars
• Spindle speed 8,000 rpm standard, optional 12,000 rpm
• Direct-Drive torque motor main rotary table
• Independent tool programming per spindle
• Options: hydrostatic support, HP configuration, tele-service and Industry 4.0 connectivity

Applications

• Hydraulic fittings and oleodynamic components in carbon or stainless steel
• Pneumatic and hydraulic connectors
• Automotive fluid system components and electrical connectors

Hydrostatic support and thermal regulation
Optional hydrostatic bearings enable the use of PCD or natural diamond tools for light alloy machining. Integrated temperature probes monitor ambient and machine internal temperatures to control thermal regulation and improve dimensional stability.

Quick setup and construction solutions
Fast retooling options allow a production island to be re-equipped in approximately 5 to 60 minutes. New HP High Performance Low Maintenance units deliver high rigidity and simplified maintenance while the Direct-Drive table reduces cycle times for complex geometries.

Technical specifications

• Manufacturer: Picchi
• Model: T12-U18
• Series: Combybar
• Product type: CNC multispindle bar machining center
• Stations: 12
• Spindles: 19
• Max workpiece size: Φ45 x L160 mm
• Spindle power: 9 kW (S1) / 13.5 kW (S6)
• Max spindle speed: 8,000 rpm (optional 12,000 rpm)
• Bar loader: integrated, for 3–6 m bars
• Controlled axes: 33
• Coolant through tools: 50 Bar
• Main rotary table: torque motor (Direct-Drive)
• Toolholder interface: ISO40 (optional HSK63 or ABS40)
• Programming: User Friendly Picchi interface, independent spindle programming
• Options: hydrostatic support, HP configuration, tele-service, Industry 4.0 readiness
