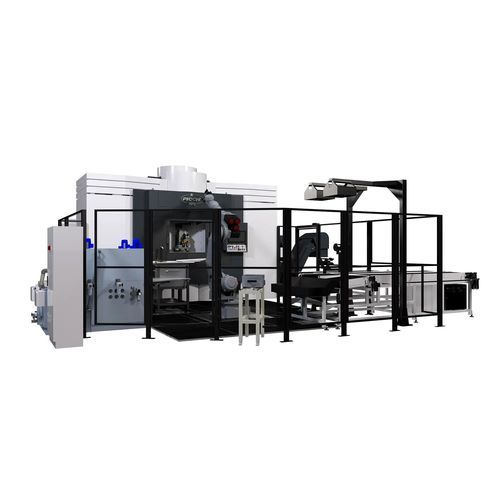

Robotic quality control cell Chrono R4

unloadingfeedloading

Overview Chrono R4 is an automated loading/unloading cell designed to perform quality control of parts, minimizing human intervention and improving production efficiency.

Production cell with “grounded” robot equipped with vision system and loading and unloading belts

• Feeding and unloading on belt;
• Phases assisted by vision system.

Elements common to all systems

• Single operator panel for management of Chrono, Robot and Vision System (if present);
• Dedicated cycles: Sampling, Filling, Emptying;
• Cycle management with several phases (e.g. OP10 - OP20);
• Cycles for positioning the loading station to improve robot accessibility;
• Washing cycles synchronized with robot movements;
• Piece locking control with volumetric and/or Pel system.

Technical features / specifications

• Operator interface: single operator panel managing Chrono, Robot and Vision;
• Process cycles: Sampling, Filling, Emptying;
• Multi-phase cycle management (OP10 - OP20);
• Loading/unloading: belt feeding and unloading designed for robotic access;
• Vision: vision-assisted phases for positioning, inspection and guidance;
• Station positioning: cycles to position the loading station to improve robot accessibility;
• Washing: robot-synchronized washing cycles;
• Piece retention/control: locking control with volumetric and/or Pel system;
• Documentation: technical data sheet (PDF) available for the Chrono R4 model.
