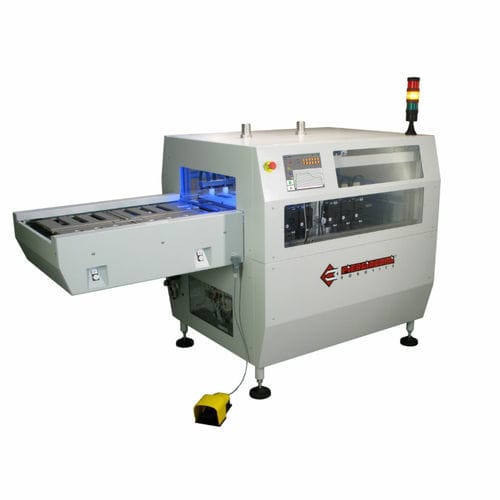

Bonding system SBM 1000

The SBM 1000 is a double-drawer bonding machine designed for those companies looking for flexibility and high performance with no compromises on precision. The inner bonding is realized by a traditional system using 2 or 4 pins, compatible with other systems on the market. The combination between the double drawer and the fast HFPB bonding technology, ensures extremely high performance levels that can easily exceed 120 books/per hour. The machine is normally supplied with 6+6 simultaneous welding points, but it can be customised, if needed, with welding points even on all 4 sides. Using and programming this machine is very easy thanks to the touch screen interactive software. All our machines use a new technology developed and patented by Piergiacomi, the High Frequency Pulse Bonding (HFPB). The HFBP offers a lot of advantages over other technologies available on the market: - FLEXIBILITY: it allows the bonding of almost any kind of material and configuration up to 15 mm of thickness. Even the latest prepregs can be easily processed thanks to the possibility to create customized welding profiles. - SPEED: thanks to a more efficient system-panel energy transfer. It doesn’t require any particular pattern to work. A bit of copper is enough to make it working. So even a very small pad can be used with huge saving of material. - ENERGY EFFICIENCY: it uses very little energy. Even at full power with all heads working, it can barely exceed 500 Watts. - EFFICACY: each head is smart, has its own electronics, and is identified by a unique IP address.
