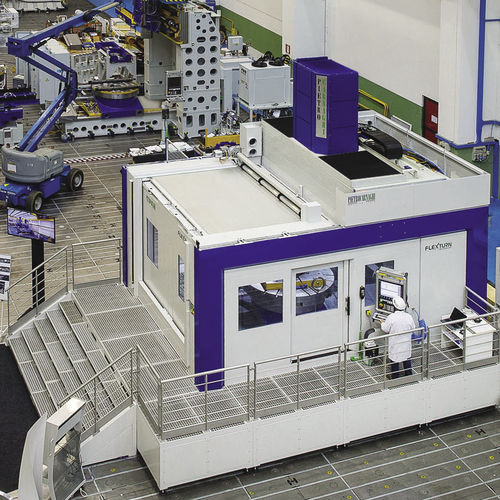

Vertical milling-turning center FLEXTURN

CNC3-axishydrostatic

The structure of FLEXTURN is directly designed over 90 years experience of Pietro Carnaghi in vertical machining centres. Enriched with the most advanced milling feature available.Considering the huge experience of Pietro Carnaghi has with big structures, Flexturn keeps the concept of of anchoring on jack levelers, ensuring the maximum stability. The over dimension of the structure and the perfect stability of the portal gives to our Customers the max rigidity and over performing results in terms of: Stability (STRUCTURES) Dynamicity (40 mt/min) Precision (upto mm 0,007) High rigidity, perfect thermo symmetry and high damping capability, using the last temp-controlled systems. All the machines are made with cellular construction and evaluated using FEM and Structural optimization software (Siemens NX CAE). Advanced hydrostatic bearings offer the maximum acceleration to zero friction. The design of FLEXTURN combines the typical characteristics of a Pietro Carnaghi vertical lathe: Rigidity and Precision + Top Level Milling features, having the capability to enter deep inside the work-piece vertically, during both milling and turning operations. While retaining all the characteristics of Pietro Carnaghi vertical lathes, Flexturn is created to meet the modern requirements of: Compactness (compared to standard machining centers), Easy shipment, Small footprint on ground, Modularity, Configuration flexibility, High capacity of evacuation of chips, water and mist, Maintenance will be easier thanks to a high ergonomic design. The machine can be installed at the floor level, reducing foundation cost.
