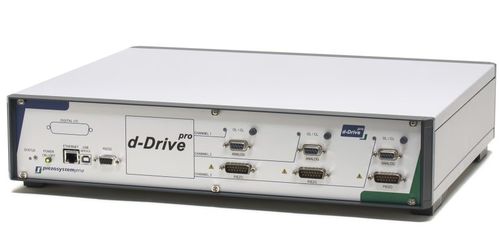

Multi-axis motion controller d-Drive pro

synchronousfor piezoelectric unitsPID

piezosystem jena presents d-Drive pro digital piezo controller. It offers a highest resolution of 24 bit. Up to 3 axes can be simultaneously controlled. Converter data is processed parallelly. It has a synchronous 3-channel-modulator with continuous current of 120 mA. Single channel is expandable to 300 mA. The controller provides high-speed data transfer with 50 kHz supply. Supply is available for external sensors. The d-Drive pro has an adjustable PID modulator. It has ASI (automatic sensor identification) and ASC (automatic sensor calibration) capabilities, which enable exchanging of actuators within the field. Its frequency generator can be programmed freely. Functions are storable. Slew rate, notch and low pass filters are adjustable. The instruction set is compatible to the current d-Drive® series. The controller features a trigger output. Similar to the standard d-Drive®, all digital piezo actuators are controllable via PC.
