Band saw ø 710 mm | CTR 710

wooddouble-columnhorizontal

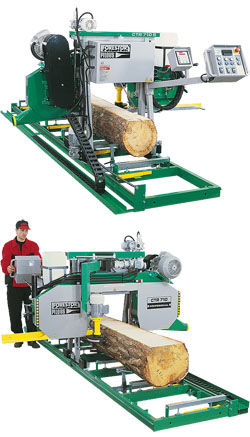

CTR 710 Small but very professional band mill. The design of the main component units, such as guide wheels including their bearing system, design of the saw band arm, the drive system, the feed system, etc. are identical with the type series CTR 800 or even the high performance CTR 950 Hydraulik. With this type, the central control panel is located on a moving bridge of the saw frame. This allows for a closer contact of the operator with the material during cutting. CTR 710S Different from the CTR 710, the central control panel is located on a fixed pillar attached to the machine bed. This allows for comfortable machine operation from one control point. CTR 800 Vertical and horizontal band saw movement, with variable speed, controlled by a frequency converter. Electrically controlled vertical feed for board thickness setting enables switching to fast feed (for bigger distances) and slow feed (for exact setting of the required board thickness). If the required board thickness is selected on the LG-Automat (accessories), the band saw moves to the set value by fast feed and automatically slows before 'overrun' and stops at the pre-set position with the accuracy of 0,1 mm. - Electrically controlled horizontal band saw movement; forward and reverse feeds with infinitely variable speed are controlled by a frequency converter. CTR 950 S Clamping and handling of the cut material is manual. This solution allows for purchasing of a value for money professional machine for cutting of large diameter trunks.
