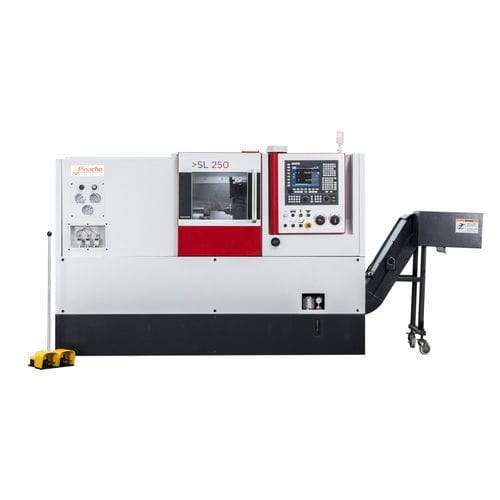

CNC turning machine SL series 3-axisinclined bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- inclined bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Performance
- precision
- Diameter
500 mm, 550 mm, 610 mm
(19.69 in, 21.65 in, 24.02 in)- Spindle speed
3,500 rpm, 4,000 rpm, 5,000 rpm
(21,991.149 rad.min-1, 25,132.741 rad.min-1, 31,415.927 rad.min-1)- Maximum cutting length
470 mm, 500 mm, 530 mm, 1,200 mm
(19 in, 20 in, 21 in, 47 in)- Bar capacity
51 mm
(2 in)- Axe X
10 mm, 32 mm
(0 in, 1 in)- Axe Z
10 mm, 32 mm
(0 in, 1 in)- Maximum torque
6 Nm, 7 Nm, 11 Nm, 12 Nm, 16 Nm
(4 ft.lb, 5 ft.lb, 8 ft.lb, 9 ft.lb, 12 ft.lb)- Coolant capacity
45 l
(12 gal)- Overall lenght
2,595 mm, 2,630 mm, 4,028 mm
(102 in, 104 in, 159 in)- Overall width
1,600 mm, 1,650 mm, 1,680 mm, 1,893 mm, 2,050 mm
(63 in, 65 in, 66 in, 75 in, 81 in)- Overall height
1,960 mm, 1,970 mm, 2,000 mm, 2,080 mm
(77 in, 78 in, 79 in, 82 in)- Weight
4,050 kg, 4,300 kg, 4,550 kg, 5,900 kg, 6,050 kg
(8,929 lb, 9,480 lb, 10,031 lb, 13,007 lb, 13,338 lb)
Description
The SL series are up to 3-axes horizontal turning centres designed to
provide a complete customization and component specific solutions to
customers. Tailor made solutions with maximum flexibility to produce parts.
STANDARD EQUIPMENT
• Fagor 8058 Control
• Dynamic graphics / trajectory
• Profile editor
• Electronic handwheel for X and Z
• Hydraulic power chuck
• 8-position automatic turret
• Linear motion guides on both axis
• Dead center for tailstock
• Hydraulic tailstock
• Hydraulic system
• Coolant system (4 bar)
• Automatic lubrication system
• Heavy duty cast iron machine base
• Precision levelling bolts
• Work light
• Status signal light
• Control cabinet cooler with filtration
• Instruction manual
• CE standard
OPTIONAL EXTRAS
•Fanuc Control 0i-TF Plus,
•Siemens 828D
•Main spindle with Ø 74 and 86 bore
•C-axis
•Automatic live tool turret with 12 or 16 positions VDI or BMT
•Hydraulic chuck with larger bar pitch
•Hydraulic Steady Rest
•Electric transformer
•Live Center
•Chip conveyor
•Tool Presetter
•Electric panel cooler
•Anti-vibration kit
•Auto parts catcher
•Bar feeder
