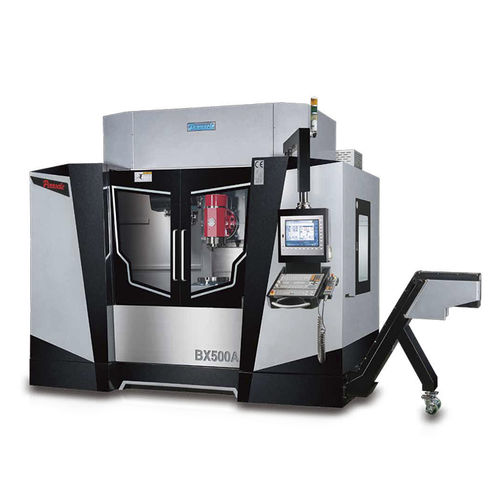

5-axis CNC machining center BX series

verticalfor compositesfor plastics

BX series machines by Pinnacle offer the latest and most precise 5-axis technology in the market. Simplify setup and production of complex and multi-sided parts without sacrificing precision and accuracy and saving time. Optimized 5-axis concepts meet every requirement and prevail in all industries worldwide BX series designed by Pinnacle that are High rigidity structure to provide widest working range. Hi quality Meehanite casting iron, tempered for stress relief and over HB190 hardness to ensure deformation-free performance year and year. Features Fast and contour-accurate motion guide High-quality surface The shortest machining time Unique B-axis Design(OPTION) The transmission mechanism of B axis for BX-series is innovated from dual worm wheel/shaft to direct drive. In addition to the smooth and powerful torque, the direct driving system features higher rotation sped, high servo response, zero backlash, and outstanding dynamic accuracy for the optimum workpiece surface finish. The external cooling system efficiently minimizes the structural thermo deformation and accuracy deflection, moreover, the output torque is upheld since the temperature is constantly kept in low and stable level. The rear end of B axis shaft is fitted with and angular position coder to boost positioning accuracy of B axis. The application of direct drive motor in B axis increases the overall accuracy as well as machining efficiency of the machine. Pneumatic Balance System The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.
