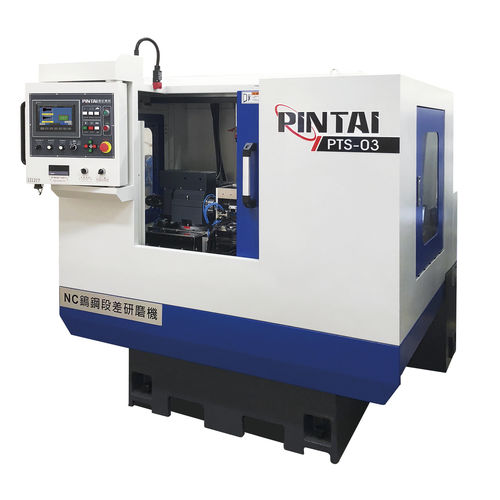

Tool grinding machine PTS-03NC
Add to favorites
Compare this product
Characteristics
- Applications
- tool
- Control type
- NC
- Spindle speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
4.5 ch
(4.5 hp)- X travel
300 mm
(11.81 in)- Y travel
250 mm
(9.84 in)
Description
Equipped with patented hopper type loading system.
●Human-machine interfacing touch screen for easy operation.
●Variable speed change for the wheel spindle and the work head spindle.
●High efficiency and high cutting.
●Workpiece diameter ∅10mm
Wheel ø125mm, feeding 0.2mm/sec.
Wheel ø150mm, feeding 0.25mm/sec.
Wheel ø170mm, feeding 0.3mm/sec.
