Brushless motor XR15 Series
DCwith brakepermanent magnet

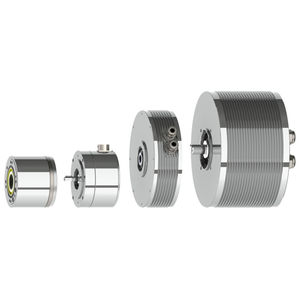

Brushless motor - XR15 Series - Pinted Motor Works - DC / with brake / permanent magnet
Brushless motor - XR15 Series - Pinted Motor Works - DC / with brake / permanent magnet
Brushless motor - XR15 Series - Pinted Motor Works - DC / with brake / permanent magnet - image - 2
Brushless motor - XR15 Series - Pinted Motor Works - DC / with brake / permanent magnet - image - 3
Brushless motor - XR15 Series - Pinted Motor Works - DC / with brake / permanent magnet - image - 4
Add to favorites
Compare this product

Characteristics

Type
brushless, DC
Configuration
with brake, permanent magnet, external rotor, pancake type, compact
Protection class
IP55
Applications
for robotics, for pump, for medical equipment, industrial, for automatic doors, for conveyors
Other characteristics
high-efficiency, low-noise, with built-in encoder
Power

Max.: 586 W
(0.8 hp)

Min.: 74 W
(0.1 hp)

Torque

Max.: 4.16 Nm
(3.068259 ft.lb)

Min.: 1.23 Nm
(0.907201 ft.lb)

Rotational speed

Max.: 7,500 rpm
(47,123.8898 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

The Printed Motor Works XR15Series is a compact yet very powerful brushless DC motor made for volume applications. The XR15range is an external rotor motor. This motor design delivers high power from a compact package while still using low cost ferrite magnets. The XR15range is available with an integrated high resolution incremental encoder available with customisable counts per revolution and channel options. Specificbenefits  Brushless motor with pancake profile  Integrated encoder option  No rare earth magnet material  Labyrinth seal (IP55)  High efficiency on load  Designed for volume applications  Low noiseDesigned for continuous use  Wide speed range up to 7,500rpm Applications Door actuators, conveyor belts, stair lifts, medical centrifuges, industrial pumps, HVAC systems, bomb disposal robots. Markets Automatic doors, materials handling, medical, life sciences, industrial automation, aerospace and defence
