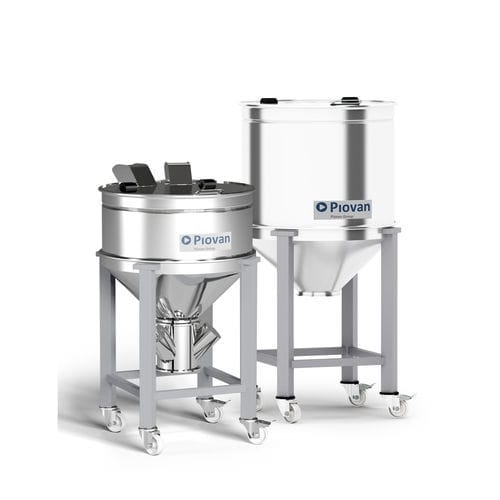

Mobile silo Bin

binfor pharmaceutical productsstainless steel

Overview

• Stainless steel hoppers for storage and bag unloading
• Very compact footprint
• Modular construction allows on-site capacity change
• Automatic lock option to eliminate human error

Construction and capacity
The body of the bin is made from stainless steel and is supplied complete with frames of different heights for floor positioning. Modular construction allows customer to change bin capacity on site.

Accessories and options

• Castors for easy moving or feet for fixing to the ground
• Top lid with manual opening and grid for bag unloading
• Two connections in the lid for suction probes
• Suction box can be installed at the outlet on request

Error-proof solution and traceability
A mobile, error-proof solution with a hardware key is available, ensuring unique identification of the storage bin by the Winfactory 4.0 supervision software and preventing incorrect positioning when bins are moved between loading and usage areas. Suitable for medical and pharmaceutical sectors and for production layouts that increase the risk of human error. The solution supports recipe setting locally or via MES to enhance traceability and process control.

Technical specifications

• Capacity: up to 245 L
• Body: stainless steel
• Supplied with frames of different heights for floor positioning
• Modular design for on-site capacity changes
• Very compact footprint
• Automatic lock available
• Options: castors or feet, top lid with grid, two suction probe connections, suction box at outlet
