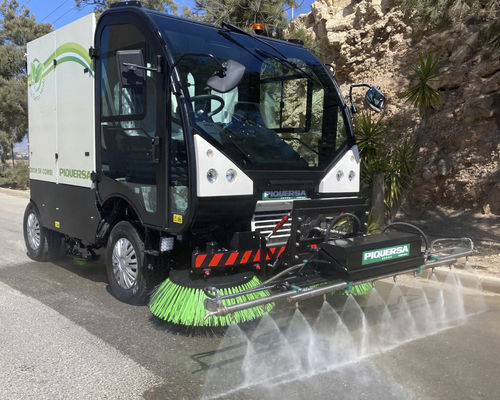

Ride-on sweeper-scrubber-dryer BA-2300H SV COMBI
hydraulicdieselstreet

ride-on sweeper-scrubber-dryer
ride-on sweeper-scrubber-dryer
ride-on sweeper-scrubber-dryer
ride-on sweeper-scrubber-dryer
ride-on sweeper-scrubber-dryer
Add to favorites
Compare this product


Characteristics

Type
ride-on
Motor type
hydraulic, diesel
Interior/exterior use
street
Brush / broom
with one brush, with two brooms
Other characteristics
compact
Working width

2,480 mm, 3,150 mm
(98 in, 124 in)

Waste container volume

1,500 l
(396.26 gal)

Power

49 ch
(49 hp)

Moving speed

24.5 km/h
(15.2 mph)

Length

4,820 mm
(190 in)

Width

1,720 mm
(68 in)

Height

2,340 mm
(92 in)

Description

BA-2300H COMBI HYDROSTATIC SWEEPER. UNLOAD. MAX. WORKING LOAD: 1.5 M3. ENGINE: 49 H.P. Compact dragging sweeper and street washer. Hydrostatic transmission by hydraulic motors to the front wheels. Perkins engine, power 49 C.V. TurboDiesel, three cylinders with particle filter and Stage V electronic control. Hydraulic rear discharge at height. Hydraulic four-wheel steering for greater manoeuvre. Hydrostatic brakes. Equipped with three floating sweeping brushes adjustable in speed and pressure with automatic adjustment: a central roller brush for the pavement and two circular lateral brushes for the curbs. 2,480 mm. sweep width. Hopper capacity of 1.5 m3 and water capacity of 900 liters. Water spray for sweeping. Washing bar with a maximum width of 3150 mm composed of two extendable side bars and a central fixed one. Flow rate and flushing pressure from 70 Liters to 70 Bars. Wide visibility cabin equipped with different comfort elements. Regulatory lighting and signaling lights. Pneumatic driver's seat. Upper flashing light. Includes high pressure kit.
