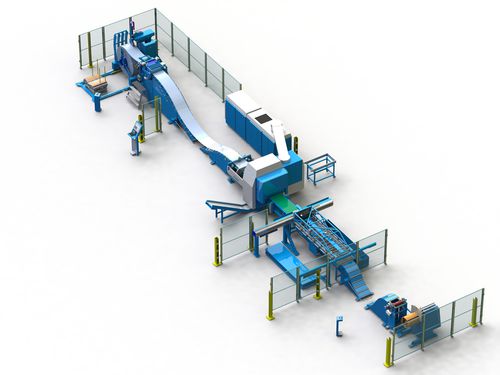

CNC punching center PCC60
automatichydraulicsheet metal

CNC punching center
CNC punching center
Add to favorites
Compare this product


CNC, automatic
Drive type
Product handled
sheet metal
Associated function
stacking, cut-to-length, strip-recoil
Other characteristics


The PCC60 is designed for narrow work pieces - up to 610 mm wide - like: - Lighting fixture bodies and reflectors - Frames of Steel Doors for housing and commercial applications - Fixing strips for trucks - Pile Joints and Rock Points - Electrical Radiators - Valves for ventilation duct works - Construction Purlins - Conveyor Rails Products are made of dedicated Coils following the True coil width philosophy which gives the shortest cycle times. Better margins are achieved due to the following facts: - Coil material is cheaper to purchase than pre-cut blanks. - Material utilization can be maximized, no waste in X- or in Y-direction because the Coil width equals to one of the part´s dimension and blanks are cut to the correct length from the Coil. - The cycle times are remarkably shorter compared to Turret Punch presses. - PivaPunch is more flexible for families of parts than a press feeding line. Sheet thickness: 0,5 mm - 5 mm Working length: inf. strip feeding, 1000 mm - 6000 mm Working width: 60 mm - 610 mm Material: mild steel, stainless steel, hot-dip galvanized steel, electrogalvanized steel, plastic coated steel, pre-painted steel, aluminium
