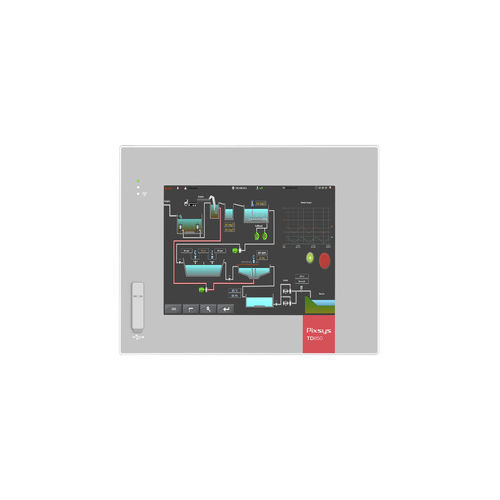

LED backlight panel PC TD850

resistive touch screen10.4"800 x 600

The Panel PC TD850 is the intermediate size panel in the range of Pixsys industrial PCs. High performance is guaranteed by an Intel Celeron Quad Core processor, an SDD data disk with a data transfer function and temperature range suitable for industrial use, even in environments with particular mechanical stresses. Two serial Buses (RS232 and RS485) and two ethernet ports 10/100/1000 ensure connectivity to the main field buses. Thanks to the Mini-PCI Express port, accessible through an opening in the casing, the PC's hardware can be expanded by inserting additional modules such as Wi-Fi cards, additional network card, native field bus. Innovative solutions Like all models in the Panel PC range, this PC has a heat dissipation system based on an all aluminium casing that makes the panel fanless. If the power is disconnected, an innovative integrated UPS system automatically closes any open applications correctly, saving open files before shutting down the operating system. The condenser technology of this system eliminates the need for ordinary maintenance required for standard battery powered UPS systems. Programming The programmable soft-PLC with the LogicLab development environment (in compliance with IEC-61131 programming standards) allows the development of control logics on board the Panel PC even without the assistance of external PLCs. The SCADA Movicon 11, produced by Progea and integrated into the Pixsys panels, makes it possible to create synoptics and a direct interface with the integrated soft-PLC or with the third party PLC Connectivity for remote monitoring and maintenance is provided by the TeamViewer software
