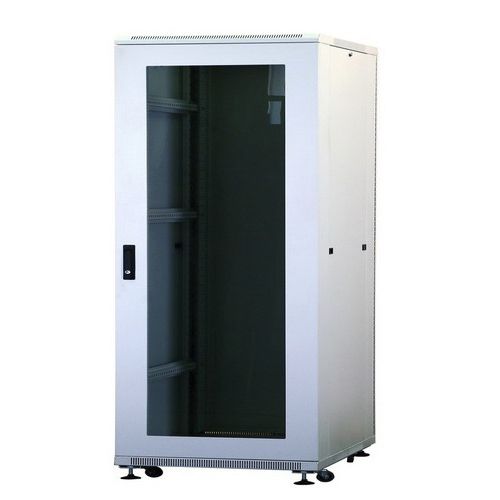

19" rack SC series

networkserverfor equipment

SC floor server assembly cabinet constitutes a universal construction for the following standard mounted equipment: communication stations, telecommunication and server equipment and data storage units. When furnished with shelves, it provides for installation of various nonstandard server equipment. Our cabinets feature a collapsible structure. Their basic configuration includes perforated installation rails, removable side walls, a set of locks with keys, a top and a bottom (allowing for installation of fan blocks), heightadjustable legs and rollers for cabinet’s transportation. A frame is fitted with earth terminals. The cabinets are furnished with a removable floor with a cable-input. Specifications and configuration: Cabinet with front and back doors and removable side walls. Front door with twist handle. Base dimensions (width х depth) – 600 х 600 mm, 600 х800 mm, 600 х 1000 mm, height – 18U (h = 1000 mm), 32U (h = 1650 mm), 42U (h = 2050 mm). Adjustable supports. Maximum static load capacity – up to 500 kg. Two pairs of vertical 19” guides with 1U(44.45 mm) step. Coating – polymeric powder with prior surface phosphatation. Cable-penetration – through bottom and top. Adjustable metal profiles’ depth. Wide range of accessories.
