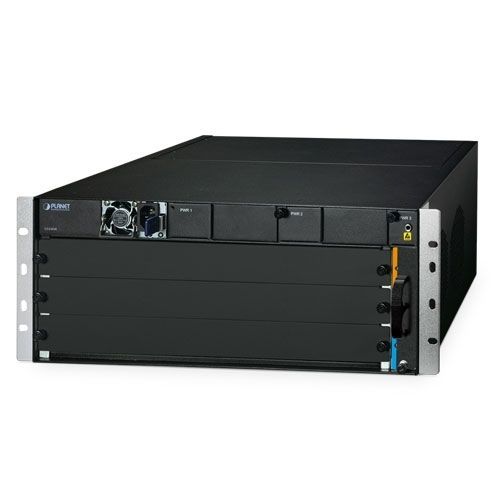

Rack-mount chassis CS-6303R

4U3 slotshigh-performance

Outstanding Flexibility and High PerformancePLANET CS-6303R Core Layer Routing Chassis Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required.The CS-6303R is a high-density chassis switch built with three module slots and a redundant power supply. It provides great port flexibility for network deployment by offering various combinable management and switch modules. For instance, one management module can work with two switch modules, or two management modules can work together to perform system backup. The available modules for the CS-6303R chassis switch are listed below:ItemCS-6303RTotal Module Slots3Management Slots2 (slots 2 and 3)Switch Slots2 (slots 1 and 2)Power Supply Slots3Total Port CapacityMax. 10/100/1000BASE-T120Max. 1000BASE-X SFP Ports120Max. 10G SFP+ Ports40Max. 40G QSFP+ Ports8Max. GPON Ports48Positioned as the core layer switch, the CS-6303R serves ideally for large-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility.Scalable 10-Gigabit and 40-Gigabit PerformanceThe CS-6303R chassis switch delivers Gigabit, 10-Gigabit and 40-Gigabit Ethernet connectivity in a highly-flexible and resilient modular platform. With a high switching capacity, it supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 1.47Tbps forwarding performance in a single system. They are ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks, and wide area networks.Rich Multi-Layer Networking ProtocolsThe CS-6303R comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. It supports advanced routing protocols, including RIP, RIPng, OSPFv2 and OSPFv3.Strong MulticastThe CS-6303R supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detection functions can be had. In Layer 3, it features PIM-DM, PIM-SM and PIM-SSM which make it great for any robust networking.Full IPv6 SupportThe CS-6303R supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.High ReliabilityThe key components of the CS-6303R are the management module, power system, fan system, and redundant power design. All system modules support hot-swapping and seamless switching without manual intervention.The CS-6303R supports In-Service Software Upgrade (ISSU) and Graceful Restart (GR) for OSPF and BGP routing protocols, ensuring non-stop user data forwarding during the system is upgraded. It also supports Bidirectional Forwarding Detection (BFD), enabling fault detection and service recovery within seconds by integrating with Layer 2 or Layer 3 protocol.Redundant Ring, Fast Recovery for Critical Network ApplicationsThe CS-6303R supports a redundancy protection mechanism and feature strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Layer 3 Virtual Router Redundancy Protocol (VRRP) protocol and Layer 2 Spanning Tree Protocol IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) technology into customer’s network to enhance system reliability and uptime. In a simple ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.Centralized Hardware Stacking ManagementThe CS-6303R can be used to build a virtually logical facility, providing enterprises, service providers, and telecoms with flexible control over port density, uplinks, and switch stack performance. The chassis switch can be connected in a ring for redundancy, ensuring data integrity even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, greatly simplifying the process of upgrading the LAN to meet increasing bandwidth demands.Powerful Security from Layer 2 to Layer 4The CS-6303R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Their protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. The private VLAN function prevents communication between edge ports, ensuring user privacy.Advanced IP Network ProtectionThe CS-6303R also provides DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection functions to prevent IP snooping attacks and discard ARP packets with invalid MAC addresses. Network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.Enhanced Quality of ServiceThe CS-6303R fully supports the DiffServ module, allowing users to specify queue bandwidth on each port. WRR, SP, and SWRR scheduling are also provided. The chassis switch supports port security to enable trusted CoS, DSCP, IP precedence, and port priority. Users can modify packets' DSCP and CoS values so that traffic can be classified by port, VLAN, DSCP, IP precedence, and ACL table. Users can also modify packets' DSCP and IP precedence values to allocate different bandwidths for voice, data, and video, customizing different levels of service quality.Efficient and Secure ManagementFor efficient management, the CS-6303R is equipped with console, Web and SNMP management interfaces.With the built-in Web-based management interface, the chassis switch offers an easy-to-use, platform-independent management and configuration facility.For text-based management, it can be accessed via Telnet and the console port. To reduce product learning time, the chassis switch offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches.For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.Moreover, the chassis switch offers secure remote management by supporting SSHv2, TLSv1.2 and SSLv3 connection which encrypts the packet content at each session.Extractive Power Supply Design for Enhanced FlexibilityThe CS-6303R is equipped with an extractable 100–240V AC power supply unit, making it easy for users to replace the power module. Additionally, the chassis switch reserves two extra backup power slots on the front panel, allowing users to install a second AC or DC power supply for redundancy. The AC and DC power options are interchangeable. The redundant power system is specifically designed to meet the demands of high-tech facilities requiring maximum power integrity.Scalable High-performance GPON for FTTx ApplicationsPLANET CS6-16PON4C4S4X GPON Optical Line Terminal (OLT) module consists of 16 GPON ports, four Gigabit TP/SFP combo ports, four Gigabit SFP ports, four 10G SFP+ ports, and one management port. It complies with ITU-T G.984/G.988 and meets the technical requirements for GPON OLTs in network access. It is easy to install and maintain a GPON deployment with up to 1024 ONU and HGU devices, providing highly-effective GPON solutions and convenient management for fiber optic broadband networks. It offers a high bandwidth of up to 2.5Gbps downstream and 1.25Gbps upstream, long-distance coverage of up to 20km between equipment nodes, and flexibility for network deployment. This is a cost-effective access technology that provides a reliable and scalable network for triple-play service applications, such as HDTV, IPTV, voice-over-IP (VoIP), and multimedia.Key Features3 open module slots: Up to 2 Management Modules (Slot 2 and Slot 3), Up to 2 Switch Modules (Slot 1 and Slot 2)Hot-swappable switching modules1 RJ45 serial console interface on Management Module for switch basic management and setupMGMT port on Management Module for HTTP server accessRedundant Power System3 power slots100~240V AC and 36-72V DC power redundancyActive-active redundant power failure protectionBackup of catastrophic power failure on one supplyIP Routing FeaturesIPv4 Routing protocol supports RIP v1/v2, OSPFv2 and BGP4IPv6 Routing protocol supports RIPng, OSPFv3 and BGP4+Routing interface provides VLAN routing modePolicy-based Routing (PBR) for IPv4VRRP protocol for redundant routing deploymentSupports route redistributionMulticast Routing FeaturesSupports Multicast Routing Protocols: PIM-DM, PIM-SM, PIM-SSMSupports IGMP v1/v2/v3Layer 2 FeaturesSupports VLAN: IEEE 802.1Q tag-based VLAN, Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad), GVRP for dynamic VLAN management, Private VLANSupports Link Aggregation: 802.3ad Link Aggregation Control Protocol (LACP), Cisco ether-channel (static trunk)Supports Spanning Tree Protocol: STP, IEEE 802.1D, RSTP, IEEE 802.1w, MSTP, IEEE 802.1sPort mirroring, Loop protection, LLDP, Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731Quality of ServiceIngress shaper and egress rate limit per port bandwidth control8 priority queues on all switch ports: IEEE 802.1p CoS/DSCP/Precedence, VLAN ID, Policy-based ingress and egress QoSMulticastSupports IPv4 IGMP snooping v1, v2 and v3Supports IPv6 MLD snooping v1 and v2Querier mode supportMVR (Multicast VLAN Registration)SecurityAuthentication: IEEE 802.1x port-based network access authentication, Built-in RADIUS client, RADIUS/TACACS+ users access authenticationAccess Control List: IP-based, MAC-based, Time-based ACLDHCP Snooping, Dynamic ARP Inspection, IP Source GuardManagementIPv4 and IPv6 dual stack managementSwitch Management Interfaces: Console and Telnet CLI, HTTP web, SNMP v1/v2/v3, SSHv2, SSLv3, TLSv1.2SNMP Management: Four RMON groups, SNMP trap for interface Link Up/DownBuilt-in TFTP client, BOOTP and DHCP for IP address assignmentSystem Maintenance: Firmware upload/download via HTTP, Reset button, Dual imagesDHCP Functions: DHCP Relay, DHCP Option 82, DHCP ServerUser Privilege levels control, NTP and SNTP, Network Diagnostic: SFP-DDM, ICMP remote IP ping, Syslog remote alarm, System LogStacking ManagementVirtualized multiple CS-6303R switch integrated into one logical deviceSingle IP address stack management, supporting up to 2 hardware units stacked togetherStacking architecture supports redundancy Ring modeSpecifications (excerpt)Total Number of Slots: 3Max. Management Module: 2 (slot 2 and 3), dual master control redundancy and automatic recoveryMax. Switch Module: 2 (slot 1 and 2)Number of Power Supply Bays: 3Number of Fan Trays: 1, hot-pluggable (2 axial fans)Dimensions (W x D x H): 482.6 x 376.2 x 178.2 mm (with rack-mount kit) 4U highWeight: 11kg (empty), 14.4kg (Chassis with 1 AC power module and 1 management module)Power Requirement: AC: Input 100-240V~, 5A Max 50~60 Hz; DC: Input 36-72V , 12.7A MaxPower Consumption: <350W
