Machining tool holder Densimet®176

grindingfor precision engineeringboring bar

Overview
Whether riveting, deep-hole drilling, grinding or turning: vibrations and noise often occur when machining lightweight or flexible materials. Our anti-vibration components made of Densimet® (e.g. Densimet®176) enable quiet, low-vibration machining of metal parts. With a tungsten content of over 90% and additions of nickel and iron, the Densimet® alloy combines very high density, a high modulus of elasticity and increased toughness, making it a rigid, vibration-damping material for tool shafts.

Main uses / applications

• Boring bars (low-vibration machining of bores, up to ≈15× shaft diameter)
• Grinding quills
• Tool shafts
• Other precision tools requiring anti-vibration compensation

Your advantages at a glance

• High rigidity
• Reduced vibration during machining
• High modulus of elasticity

Notes on supply & manufacturing

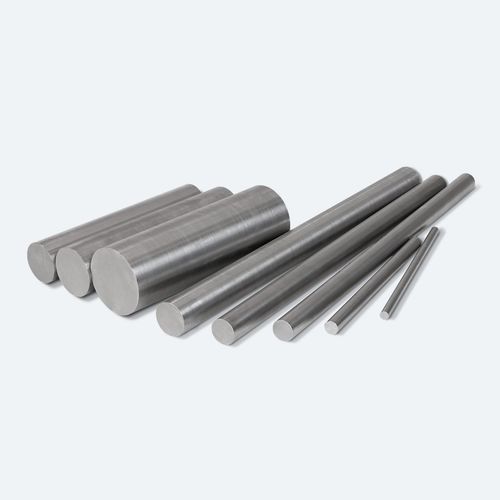

Rods of Densimet®176 are stocked in diameters from 6 mm to 62 mm to ensure short delivery times. Ground rods to customer-specific dimensions and tolerances can be supplied on request. Manufacturing of anti-vibration components to customer specifications is available.

Material information
Components are produced from Densimet® heavy-metal alloy (Densimet®176): a tungsten-based heavy-metal matrix (tungsten content >90%) with nickel and iron additions to increase toughness and provide a rigid, vibration-damping tool shaft material.

Technical characteristics / specifications

• Alloy / material name: Densimet®176
• Tungsten content: > 90%
• Additional alloying elements: nickel and iron (increased toughness)
• Mechanical behavior: very high density and high modulus of elasticity → rigid and vibration-damping
• Typical applications: boring bars, grinding quills, tool shafts, precision anti-vibration tooling
• Boring bar capability: low-vibration machining up to approx. 15× shaft diameter
• Stock availability: Densimet®176 rods in diameters 6 mm to 62 mm (also available ground to customer tolerances)
• Custom manufacturing: components can be produced to customer specifications
