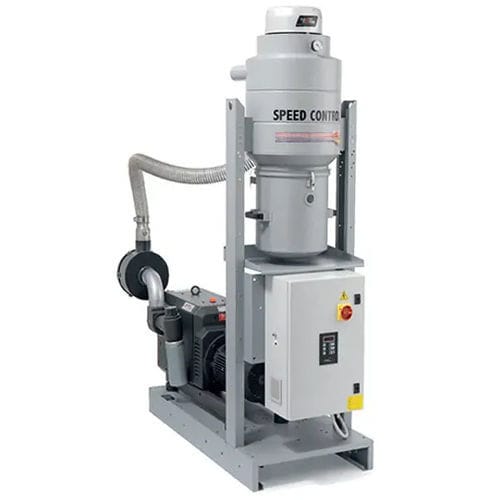

Extraction unit PM series
Add to favorites
Compare this product
Description
The PM series extraction units with power from 3 to 30 kW are used for the pneumatic conveyance of production batches of up to 4500 kg/h over distances of up to 200m.
They are used in Matrix centralised loading systems.
TECHNICAL SPECIFICATIONS:
1-3 stage side-channel blowers
Cam pumps
Lobe pumps
Self-cleaning filters with polyester cartridges and dust tray
RS485 ModBus interface
ACCESSORIES:
Clogged filter alarm pressure gauge
SPEED CONTROL function
THE ADDED VALUE:
Versatile
The extraction units can be integrated in the MATRIX centralised system or the Siemens PLC.
Efficient
The SPEED CONTROL function uses an inverter and pressure transducer to adjust the transport speed automatically, preventing polymer deterioration and improving energy efficiency.
