High-performance fan VB3IP55centrifugalextraction
Add to favorites
Compare this product
Characteristics
- Type
- high-performance, IP55
- Configuration
- centrifugal
- Function
- extraction
- Supply voltage
- AC
- Material
- steel, stainless steel
- Applications
- industrial
- Air flow
200 m³/h, 300 m³/h, 400 m³/h, 600 m³/h
(7,062.933 ft³/h, 10,594.4 ft³/h, 14,125.867 ft³/h, 21,188.8 ft³/h)- Diameter
100 mm
(3.937 in)- Rotational speed
1,400 rpm, 2,800 rpm
(8,796 rad.min-1, 17,593 rad.min-1)- Noise level
50 dB, 63 dB, 73 dB
Description

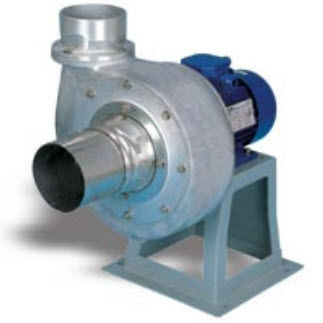

Centrifugal extract fan for Atomic Absorption
Produced by pressure-forming the aluminium housing, is adjustable to 8 positions. High-performance, galvanised steel impeller. Statically and dynamically balanced. Nylon support stool for B3 motors. Stainless steel external assembly fittings.
Available with three-phase and single phase single speed motors two-speed motors with IP55 protection or Ex-d protection.
