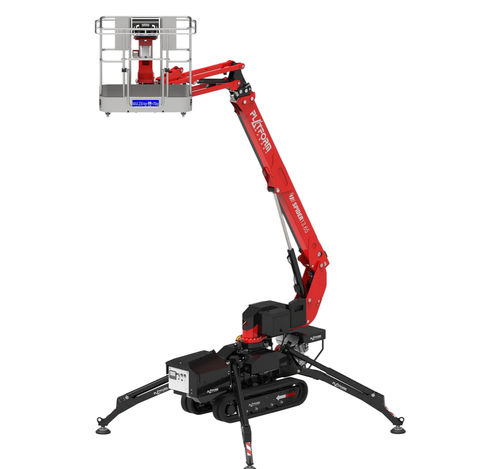

Self-propelled spider lift SPIDER 13.65
trackelectricdiesel engine

self-propelled spider lift
self-propelled spider lift
self-propelled spider lift
self-propelled spider lift
self-propelled spider lift
Add to favorites
Compare this product


track, self-propelled
Motor type
electric, diesel engine, gasoline engine
Other characteristics
Lift capacity

200 kg (441 lb)

Working height

13.4 m (43'11")


Tracked Self Propelled Platforms Working height 13,40 m Max side outreach 7,00 m Spider 13.65 fulfills the spider self propelled range in the middle segment from the 10 to the 20 m. working height. Spider 13.65 is a synonumous of versatility, compactness and easiness to use, in accordance to the guidelines of Platform Basket Spider Range. The new spider represents an innovation in the sector: Spider 13.65 is the only telescopic self propelled boom with fly jib in this range of aerial working platform. Platform Basket technical staff realizes a super compact access platform (min. width in stowed position: 2 m.; minimum height in stowed position:; 0,8 m) although the performance in working height and in max side outreach put Spider 13.65 at the top of the range. Noteworthy are: the automatic outreach control system, a solution that allows to have more outreach in relation with the weight; the compact stabilization, a features that improves the versatility of Spider 13.65 thanks to the narrow stabilization footprint (2,7x2,7 m.); the lightness that enables the transportation with any trucks features 3,5 T. of total weight the remote control in translation with a double velocity system that allows the loading and the unloading in total safety with any means of transportation equipped by the climb ramps; the operating rapidity, in fact is possible to develop the jib in less than 40 seconds.
