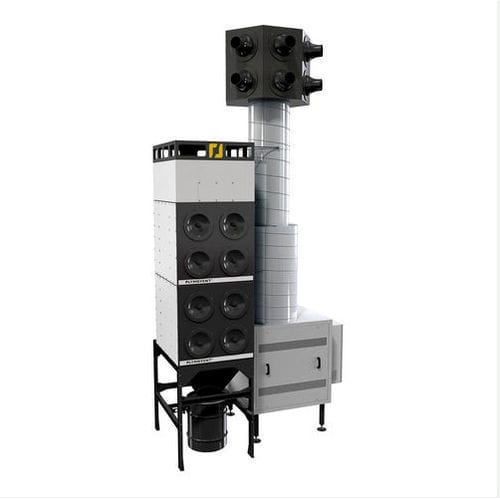

Cartridge filtration system MDB-Diluter Pro Connect

for welding fumesdust

The MDB-Diluter Pro Connect is a free-standing general filtration system, developed to reduce and control the background concentration of heavy welding fumes in a workshop. Features Less installation costs because the stand-alone unit does not require fixed duct work The frequency inverter saves energy, expands filter life and offers a constant reliable performance Energy saving because of re-circulation of expensive heated or cooled air The MDB-Diluter Pro Connect is a standalone general welding fume filtration system MDB-Diluter systems are designed for intensive welding activities with heavy dust load. The unit prevents accumulation of welding fume beyond the legal limits by continuous filtration and dilution of polluted air. The blue haze of welding fumes, caused by the risen fumes that concentrate between four and six meters (13 and 20 ft) above the floor, is continuously mixed with clean air injected by nozzles. Recommended for Intensive dry welding activities with a heavy dust load Workshops where ductwork is not possible Reducing welding fumes in the whole workshop for all staff, not only for the welders Features Relatively small investment to control the welding fumes in your workshop Self-cleaning filter Less installation costs because the stand-alone unit does not require fixed duct work The frequency inverter saves energy, expands filter life and offers a constant reliable performance Energy saving because of re-circulation of expensive heated or cooled air
