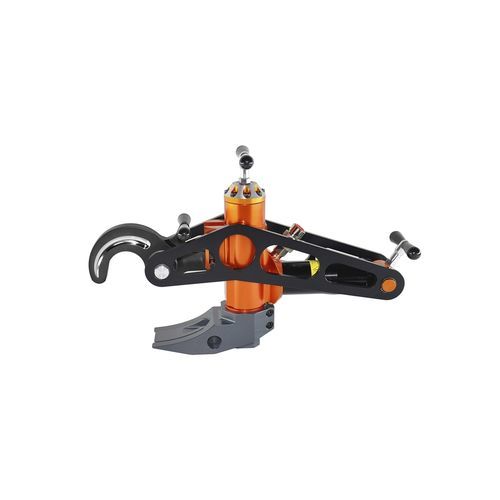

The hydraulic bead breaker MAXI-LEM SPECIAL FV 13/42 BS/80 DCZ can be used to detach the bead of the tyre on both sides of the rim for earth-moving machines which are equipped with pieces rims in 3-5 pieces up to 49” with shoulder of the rim 12 cm high.
Characteristics
Adjustable claw - Ciao
Weight: - 15,5kg
Dimensions: - 59x11x36 cm
Stem stroke: - 7 cm
Bead breaking power: - 8000 kg
Clamping power: - from 6200kg to 9700kg
Foot mechanical: - 13 cm
Max. dimensions of tyres: - 49”
Max. operating pressure: - 700 bar
