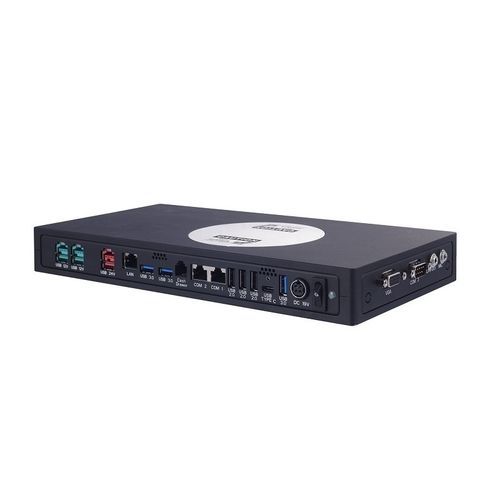

Box PC VariBOX T

embeddedIntel® Core i3Intel® Core i5

Product Overview
Compact PC solutions that integrate with Poindus display products.

Box PC Applications

• Intel® 12th Generation Alder Lake i3/i5 CPU.
• Exceptional Thermal performance (Full CPU performance without thermal throttling).
• Custom Expansion Options: PUSB/RAID/WiFi / COMM (Project Based).
• OS Support: Windows 11 / Linux
• Robust Aluminum/Copper Enclosure
• System Size: W285 x D147 x H38 (mm).
• VESA 75/100

Designed for High Performance Box PC Applications
The VariBOX T Series delivers power and performance for advanced retail and hospitality scenarios. Applications that demand high performance for complex retail and hospitality scenarios require a powerful processor and extensive connectivity for retail peripherals. The VariBOX T Series has the flexibility for mixed implementations in any scenario, meeting the demands of any project requirements.

Point Of Sale (POS) Applications

• Box PC solutions for every budget and performance requirement.
• Frees up valuable counter space with its compact design.
• Provides retailers of all sizes with reliability and features that maximize operating cost efficiency.
• Robust, extended lifecycle industrial platform specifically designed for Advanced Point of Sale (POS) Applications.
• Modular platforms with enhanced security providing retailers and hospitality operators the flexibility to deploy the solution in a variety of scenarios to handle even the most demanding environments.

Ultra-Compact Design & Cost Effective Computing Performance
Delivering consistent performance no matter the task, Poindus Retail Solutions combine the power, performance, and security to keep businesses running smoothly. Box PC solutions can be deployed in strategic areas providing computing assets where they are needed in any scenario. Box PCs feature ultra-compact design and are powered by Intel® processors with low-power consumption in a fanless architecture. The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.

Specifications
VariBOX T Series
Main Board
Processor
Intel® Alder Lake-P Platform
Core i5
Core i3
Chipset
CPU Integrated
System Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 32 GB
Graphics Engine
Integrated Graphics Processor – Intel® UHD Graphics for 12th Gen Intel® Processors
TPM
Intel F/W (TPM 2.0)
Storage
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen3x4)
1 x 2230 M.2 E-Key (WiFi/BT)
I/O Ports
I/O
3 x USB 2.0
3 x USB 3.1
3x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default setting is 0v. COM3: DB-9)
1 x RJ45 LAN Port
1 x Type C (Support DP)
1 x VGA
1 x Cash Drawer (RJ11, support DC+12V or +24V (default) port, support 2 cash drawers)
1 x Line-Out
1 x MIC
Optional I/O Ports (Project Based)
PUSB (12V x 2, 24V x 1)
RAID (Dual SSD)
WiFi (2 x External Antenna Holes)
Ethernet
1 x GbE LAN Ports by RJ45
Support Wake On LAN, PXE, AMT
Power Adapter
19VDC (adapter 19V/90W)
*PUSB will use 180 watt adapter
Environment
Operating Temperature: 0°C ~ 40°C
Operating humidity: 10% ~ 90% (non-condensing)
Non-operating temperature: -20°C ~ 60°C
Non-operating humidity: 10% ~ 90% (non-condensing)
Use wide temperature range memory and storage
Dimension (W x H x D): 285 x 147 x 38 mm
OS
Operating Systems: Win 10 / Win 11 / Linux
Compliance
CE / FCC / LVD / RoHS

Key Features / Technical Specifications

• Intel® 12th Gen Alder Lake i3/i5 CPU
• DDR5 SO-DIMM up to 32GB
• Integrated Intel® UHD Graphics
• Multiple USB (2.0/3.1), COM, LAN, VGA, Type C (DP), Audio I/O
• Optional: PUSB, RAID, WiFi (external antenna)
• Fanless, robust aluminum/copper enclosure
• VESA 75/100 mounting
• OS: Windows 10/11, Linux
• Dimensions: 285 x 147 x 38 mm
• Certifications: CE, FCC, LVD, RoHS
