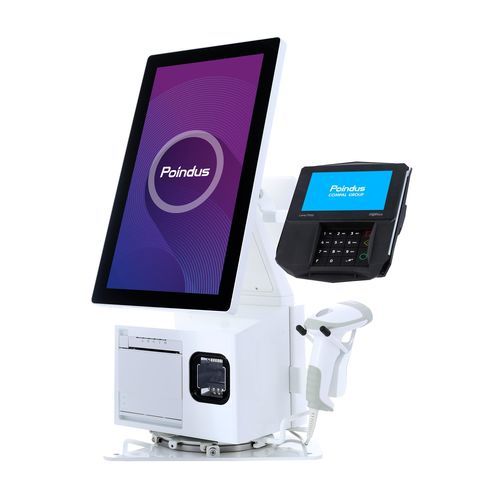

Projected capacitive touchscreen terminal VariKIOSK 217

kiosk1920 x 1080Intel® Core i5-1235U

Product Overview
VariKIOSK 217 is a fully integrated AIO desktop self-service kiosk designed for retail and hospitality environments. It supports Intel® 12th Generation Core i3 & i5 CPUs and features Intel® TPM for system and data protection with software-based security hardening. The kiosk offers a true flat 17.3″ 9:16 LCD with 300 nits brightness and a front bezel that is IP54 dust and spill water resistant. The display can be optionally rotated for horizontal or vertical orientation. Additional options include a turntable base for cashier or customer-facing interactions, swivelable payment terminal brackets for simple payment integration, and design flexibility of the front bay to accommodate various printers and scanners. Multiple rear display options and an integrated AI camera are also available as options. The chassis is made from durable die-cast aluminum and is built to last. The design emphasizes serviceability with easy access and quick swap modular design for SSD/HDD and MB box.

• Fully integrated AIO desktop self-service kiosk
• Support Intel® 12th Generation Core i3 & i5 CPU
• Intel® TPM protect system & data with software-based security hardening
• True flat 17.3″ 9:16 LCD, 300 nits brightness with front bezel IP54 dust & spill water resistant
• Rotatable Display (Horizontal or Vertical) (optional)
• Turntable Base to allow cashier or customer facing interactions (Optional)
• Swivelable Payment Terminal Brackets for simple payment integration (Optional)
• Design flexibility of front bay to accommodate various printers and scanners
• Multiple Rear Display Options (optional)
• Integrated AI Camera (optional)
• RAID 0/1 function with dual SSD/HDD support (optional)
• Durable die-cast aluminum chassis; built to last
• Redefines serviceability from design with easy access & quick swap modular design for SSD/HDD & MB box

Retail Ready Kiosk
VariKIOSK 217 can be configured to meet custom project demands, offering vertical or horizontal displays, and supports a variable selection of printer and scanner devices in the front bay. It also supports a selection of rear display sizes and an integrated camera module for AI recognition. VariKIOSK also has mounting options for third party payment terminals, making it the perfect desktop kiosk for retail and hospitality environments. A versatile tool for retailers looking to improve service quality and operational efficiency.
Deliver the Power to Perform

• True flat 17.3″ Display (16:9 LCD, 300 nits brightness)
• Intel® 12th Generation Core i3/i5 CPU (Reliable Intel Processing)
• IP54 Ingress Spill Proof (Front Panel IP54 dust and waterproof protection)
• Redefined Serviceability (Quick swap modular design for SSD/HDD & MB box)

Multifunctional Kiosk
In addition to its flexible configuration options, the VariKIOSK 217R offers true multifunctionality by supporting both POS and Self-Checkout kiosk use in a single compact unit. Designed with system integrators in mind, this model features an optional turntable base that allows the entire unit to rotate, facing the operator during assisted transactions or turning toward the customer for self-service. The main display can be rotated between horizontal (landscape) orientation for POS mode and vertical (portrait) orientation for kiosk mode, adapting easily to different usage scenarios. The payment terminal bracket is also rotatable, enabling the device to be positioned correctly for either operator or customer interaction. This dual-function capability reduces hardware investment, simplifies deployment, and provides a smart, space-saving solution for retail and hospitality environments.
Flexible Desktop Kiosks for Seamless Store Integration
Our kiosk solutions are designed for the rigors of retail and hospitality scenarios, serving as compact, efficient solutions for enhancing customer experience and streamlining store operations. These interactive devices can facilitate self-service checkouts, or as queue busting backup checkout terminals, provide product information, and assist in wayfinding within the store. With their ability to operate independently, desktop kiosks can effectively reduce wait times and free up staff to focus on more complex customer service tasks.
Desktop Kiosk
VariKIOSK has a compact footprint for space restricted environments. Vertical Only Orientation: VariKIOSK 217. Horizontal or Vertical Orientation: VariKIOSK 217R. Compact kiosks are a smart solution for businesses operating in areas where space is at a premium. The small footprint allows for efficient use of available counter space, which is particularly beneficial in retail and hospitality scenarios. VariKIOSKs can offer a wide range of services, from information access to transaction processing, without the need for extensive physical infrastructure. By integrating technology and design, compact kiosks can enhance customer experience while also contributing to a streamlined and modern aesthetic within the establishment.
Specifications
VariKIOSK 217 (PE26)

Main Board
Processor: Intel® Alder Lake-P Platform, i5-1235U up to 4.4 GHz, i3-1215U up to 4.4 GHz
Chipset: Iris® Xe Graphics eligible
System Memory: 1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB
TPM: Intel® TPM 2.0

Display & Touch
LCD Size: 17.3″ 16:9 TFT LCD (LED backlight)
Brightness: 300 nits
Resolution: 1920 x 1080, Full HD
Touch: True Flat Projected Capacitive Technology
Orientation: Rotatable Screen (Optional)

Storage
HDD/SSD: 2.5” 256G (Default) as standard
RAID: *Project Based

Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 3x COM (COM1/2: RJ48 support DC+0/5/12v by BIOS setting, default setting is 0v. COM3: DB-9)
Cash Drawer: 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers
VGA: 1 x DB-15 VGA port Power enable by BIOS setting (default disable)
BUS Expansion: 1 x M.2 M Key for SSD, 1 x M.2 E Key
Type C: 1 x Type C (PD + DP)
Powered USB port: 2 x DC+12v and 1 x DC+24v (Project Based)
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on / off switch button
DC Input: 1 x Mini Din 4P (DC 19V only)

OS Support
Win 11 IoT GAC

Power Adapter (External Adapter)
DC+19V, 90watt

Peripherals
Handheld scanner – Newland NLS-HR3280
2D Scanner – Datalogic Magellan1500i
Omnidirectional scanner – Datalogic Magellan M3450
Printer – Epson TM-M30 III
10.1“ 16:10 @ 1280 x 800 2nd screen
PinPad Bracket for Verifone VX820
Turntable Base (Optional)

Compliance
Certifications: CE, FCC, LVD, RoHS
Ingress Protection: IP54 Front Panel
Material: Main Unit: Die-Cast Aluminum ; I/O Cover: Plastic
Color: Main Unit: White

Dimension (W x H x D mm)
Vertical mode: Main Unit: 270 x 608.7 x 234.6 mm; Main Unit + Peripherals: 377.6 x 608.7 x 234.6 mm
Horizontal mode: Main Unit: 437 x 533.7 x 216.9 mm; Main Unit + Peripherals: 489.6 x 533.7 x 237.1 mm
Weight: 12kg

Environmental
Operating: 0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
Storage: -20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing

Characteristics / Technical Specifications

• Intel® Alder Lake-P Platform (i5-1235U/i3-1215U up to 4.4 GHz)
• Iris® Xe Graphics eligible
• 1 x SO-DIMM DDR5 slot, 8GB RAM standard, up to 32GB
• Intel® TPM 2.0
• 17.3″ 16:9 TFT LCD, 300 nits, 1920 x 1080 Full HD
• True Flat Projected Capacitive Touch
• Rotatable Screen (Optional)
• 2.5” 256G SSD (Default)
• 1 x Gigabit Ethernet, 3 x USB 2.0, 3 x USB 3.1, 3x COM, 1 x RJ-11, 1 x DB-15 VGA, 1 x M.2 M Key, 1 x M.2 E Key, 1 x Type C (PD + DP), 2 x DC+12v, 1 x DC+24v
• HD Audio, 2W Speaker x 2
• Power: DC+19V, 90watt
• Certifications: CE, FCC, LVD, RoHS
• IP54 Front Panel
• Material: Die-Cast Aluminum (Main Unit), Plastic (I/O Cover)
• Color: White
• Dimensions: Vertical mode: 270 x 608.7 x 234.6 mm; Horizontal mode: 437 x 533.7 x 216.9 mm
• Weight: 12kg
• Operating Temp: 0ºC ~ 40ºC; Storage Temp: -20ºC ~ 60ºC
