Picking shelving

storage warehouseconveyingwith shelves

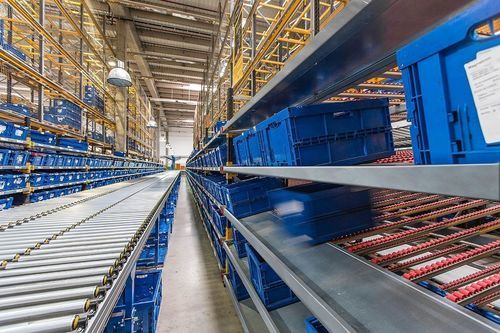

Carton Flow is a gravity-operated, high-density roller flow racking system designed for dynamic picking and storage of unpalletized load units (boxes, totes). It supports manual loading and can be configured for FIFO (first-in, first-out) or LIFO (last-in, first-out) operation.

Operation and applications

• Suitable for boxes and containers of various sizes and materials.
• Configurable FIFO or LIFO flow: FIFO installations load at the higher end and discharge at the opposite end; LIFO installations load and unload at the same end.
• Optimises order preparation by increasing the number of pick lines and reducing operator travel distances.
• Space-efficient layouts: FIFO requires one entry aisle and one exit aisle; LIFO can operate with a single entry/exit aisle.

Accessories

• Continuous guide: prevents boxes from drifting into adjacent lanes during flow or picking.
• Entry guide: assists operators to load boxes into the correct lane.

Gravity roller conveyor

• Loads are placed on inclined receiving lanes and move downwards under gravity, regulated by roller assemblies toward the dispatch and picking position.
• The load is introduced at one end and exits at the opposite side in FIFO; in LIFO both actions occur at the same end.

Technical specifications

• System type: gravity-operated, high-density carton flow for manual loading and accumulation of unpalletized units.
• Flow modes: configurable FIFO or LIFO.
• Roller tracks: ergonomic design for easy introduction and extraction; on-site adjustable inclination to ensure controlled flow and avoid clogging.
• Pitch: 50 mm (standard option).
• Finishes available: painted, galvanized, stainless steel.
• Suitability: designed for picking operations and depth accumulation to improve picking flow.
• Space optimisation: minimises required aisles (1 entry + 1 exit for FIFO; single entry/exit for LIFO).
• Maintenance: low maintenance and no power required for in-lane transport.
• Warranty: 2 years (manufacturer indication).
