Transporting tank T525

sludgegalvanizedtrailerable

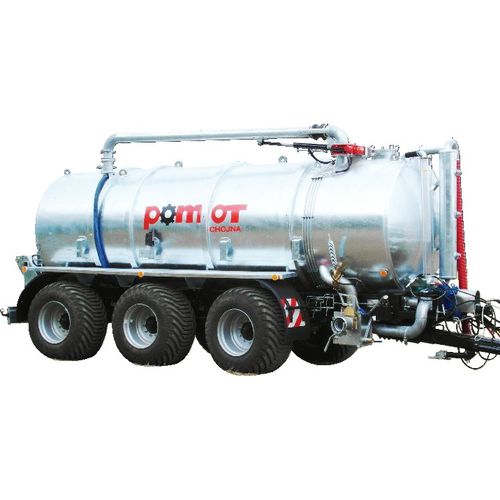

The slurry tank type T525 at capacity 25000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work. The vehicle is available in four versions: MINIMUM, STANDARD, CLASSIC and PREMIUM. MINIMUM version has a compressor at capacity 10000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m. STANDARD version is the implementation of the standard described below. CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle. PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto Specifications and standard equipment: The tank is made of 5mm thick sheet with additional reinforcements Construction of the slurry tank - frame construction - tank mounted on a frame made from section closed Tank hot dip galvanized inside and outside. Inside the container pier with reinforcing frames. Painted frame. Three-spring suspension type TRIDEM or SIDRA 12000, six wheels - 560/60 x 22.5 Compressor at capacity 12000 ltr. / min. (flowability of air) The double-ball valve protecting for overflowing the compressor. Galvanized overflow tank with sight glass and drain tap Oil catcher / silencer. Manowakuometr.
