sewer cleaner truck / 2-axle
KOMBI series

Add to MyDirectIndustry favorites
Compare this product

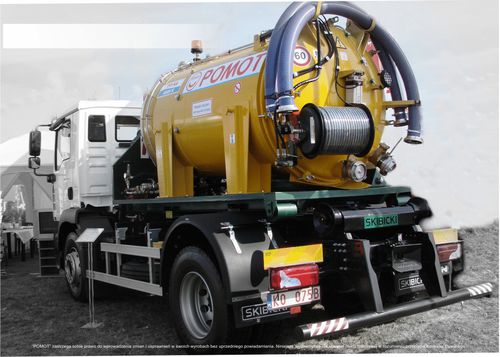

sewer cleaner truck / 2-axle sewer cleaner truck / 2-axle - KOMBI series
{{requestButtons}}

Characteristics

  • Function:

    sewer cleaner

  • Number of axles:

    2-axle

Description

Technical and operational data:
a sludge tank
a length of tank shell 3000 mm
The internal diameter of tank 1800 mm
a total capacity of the tank-drum 8000 l
a sludge tank at capacity 8000 l
a capacity of the tank for clear water 1800 l
a drum Thickness 5mm
Grade of drum S 235JR
The rear bottoms opening on the side-hinged on the left side, lockable with hydraulically controlled actuators
an internal breakwater provides stability of the vehicle while driving: 1 pc.
a tank positioned horizontally (parallel to the stringers)

The suction pressure line system:
a compressor MORO type: PM80Turbo driven by the hydraulic motor. Compressor blades with a "long life" to ensure continuous operation of up to 90 minutes – pump capacity of 600m3 / h a suction arm Moro electro-hydraulically operated, providing marketing arm to 320O, awareness and extension of the boom, pipe O4 "

Transportation of water for irrigation, supplying drinking troughs for animals as well as to the extinguishing shares held by the fire department.
