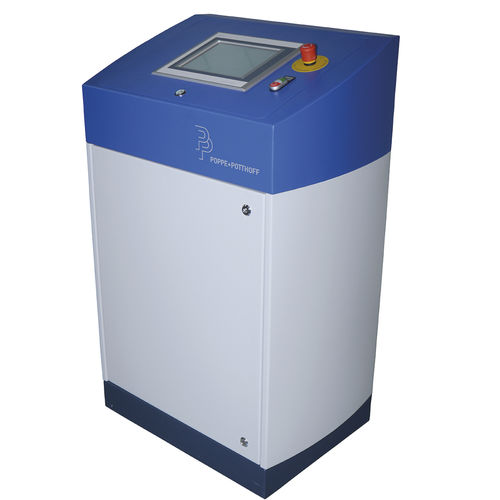

Compressor units up to 400 bar
The PPM compressors operate per the pressure conversion principle. The existing operating air is used to compress nitrogen. This principle makes full use of the existing N2 form. The mobile station compresses nitrogen from cylinders to up to 400 bar, regardless of the cylinder pressure.
Compressor type PPM/V/400/120
In this case, a power of approx. 120 Nl/min can be ensured. If the inlet pressure drops below 20 bar, the cylinder must be replaced. Moreover, the production is not affected by cylinder change, since the storage volume of 5 l maintains the necessary supply. The compressor can be operated without problems with a pre-pressure of max. 300 bar.
In the case of a nitrogen supply via a liquid gas tank or a generator, an initial pressure of at least 20-25.
N2 cylinder pressure: min. 20 – 25 bar, max. 300 bar
N2 Tank pressure: min. 20-25 bar
Operating pressure: max. 400 bar
Compressed air drive: min. 5 bar, 1/2″ connection sleeve
Power: approx. 120 Nl/min
Pressure regulator at the outlet
Compressor type PPM/V/400/400
With this PPM compressor, an output of approx. 400 Nl/min can be ensured. This is the classic application case of an N2 post-compression.
