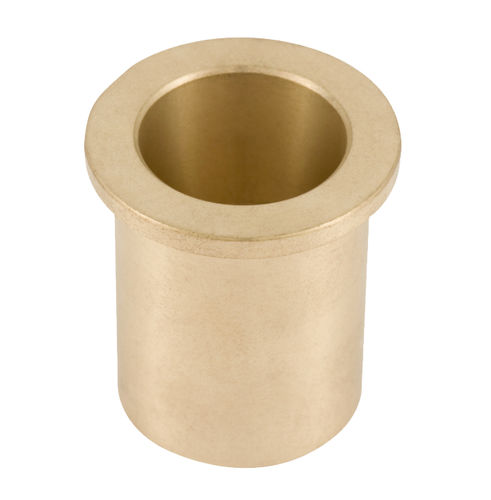

Bronze bushing BP25

powerflangetransmission

The Metafram brand gained recognition for its self-lubricating bearings from the end of World War II. They have established themselves as a benchmark in the field of power transmission. In bronze alloy BP25, ferrous FP20 or SO16, this range of materials allows large operating ranges under load and speeds. The performance of the BP25 bronze self-lubricating bushing The standard bronze bushing offers operating ranges suitable for wide applications. BP25 self-lubricating bearings have a very good coefficient of friction, down to 0.01. The Metafram bronze bushing is recommended for high speeds of up to 6 m/s thanks to the self-lubrication. The good corrosion resistance gives this ring very wide fields of application such as the marine atmosphere, nuclear power or contact with food products. The operation of the self-lubricating bronze bushing Metafram BP25 material is self-lubricating. Its impregnation forms an oil meniscus between the shaft and the bearing which gives it a long service life. This bronze bearing is maintenance free. The material variants of the BP25 bronze bushings Other variations of the BP25 material exist. We have in our alloy range on request high speed materials up to 8 m/s or dry lubrication for specific applications. You can find this information in our brochure, or contact us to study your specifications. Other variants of the BP25 material exist. We have in our alloy range on request high speed materials up to 8 m / s or dry lubrication for specific applications. You can find this information in our brochure, or contact us to study your specifications.
