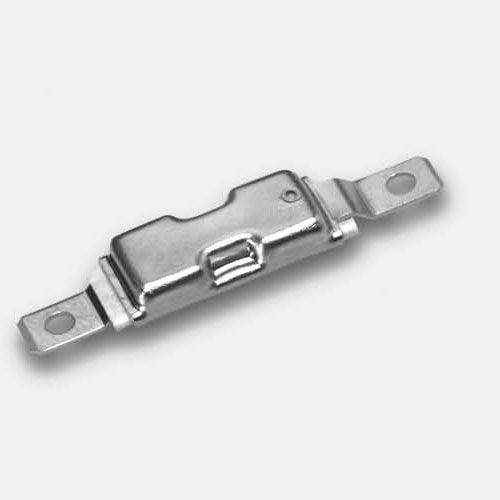

Bi-metal thermostat E

preset

An economical creep-action thermostat for low-current 120 VAC applications. Its opposite-end terminals and low profile allow for various installation options. Suitable for use in heating pad and electric blankets. Features ________________________________________ •Conductive bimetal construction; the bimetallic element carries the circuit current. •Creep action device; slow make/slow break switching action. •No built-in differential between the opening and closing temperature. •Case electrically alive. •Preset calibration temperature; not adjustable in the field. •Low profile design and opposite end termination allows for flexibility of installation. ________________________________________ Contact Ratings •2 amps/125 volts AC resistive ________________________________________ Calabration Temperature Range •Available with nominal calibration temperatures from 30°C to 90°C.
