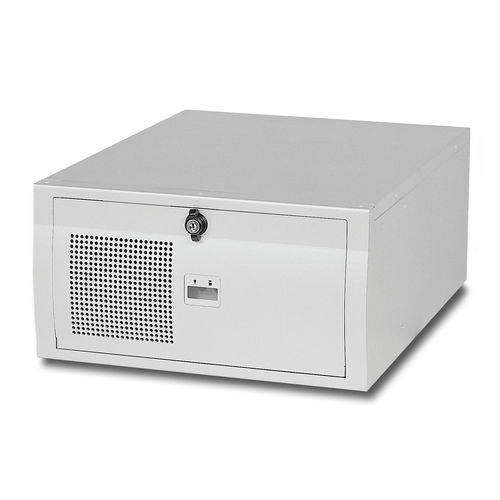

Wall-mounted chassis AREMO-8164

compact4U8 slots

AREMO-8164 is designed for PICMG 1.0/1.3 with 8-slot backplane that is 4U full size industrial node chassis built with two 5.25" HDD driver space for CD/DVD-ROM, two internal 3.5" HDD driver bays and replaceable air filter for easy maintenance. AREMO-8164 equips two USB interface on front panel, and also high wattage PS/2 form factor PSU. The compact size feature of AREMO-8164 is suitable for Industrial and Engineering applications. Features Two 5.25" and two internal 3.5" HDD drive bays for CD-ROM or mobile rack, easy to install software and mirror disk (RAID1) Two USB ports on the front panel Can be vertically or horizontally mounted, easy to fit into space limited environment One 12cm ball-bearing cooling fan for better ventilation One replaceable air filter for easy cleaning Two adjustable positions for hold-down card retainers provide better protection from vibration Wall-mounting bracket equipped Both 8-slot PICMG 1.0 or 1.3 backplane applicable; easy to change different backplanes Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defected power supply
