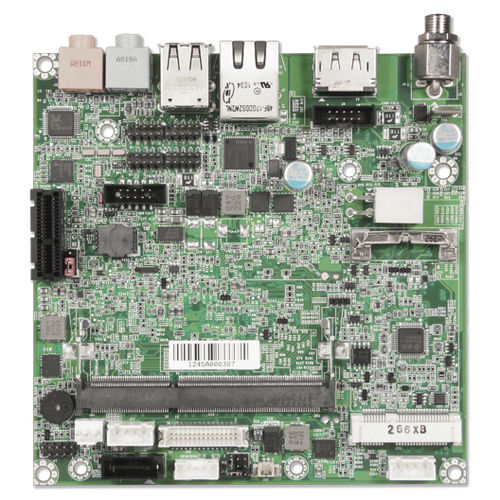

Nano-ITX single-board computer NANO-5050

Intel® Atom D2550SATAVGA

Intel® AtomTM D2550 processor based NANO-ITX Board with dual display, Gigabit Ethernet, Audio, USB, CF-SATA and SATA Features Intel® Atom™ D2550 1.86GHz processor based on Intel® NM10 platform One 204-pin SODIMM supports DDR3 up to 4GB Multiple display by VGA, DP, single channel 24 bit LVDS Supports one CF-SATA socket and one SATA port One Mini-PCIe socket and PCIe x1 slot for expansion Supports DC 12V input NANO-5050 adopts latest Intel® AtomTM D2550 CPU and NM10 chipset which is for the low power compact size system. The new architecture integrates the 3D graphics engine and memory controller. It’s suitable for Medical and Networking applications.
