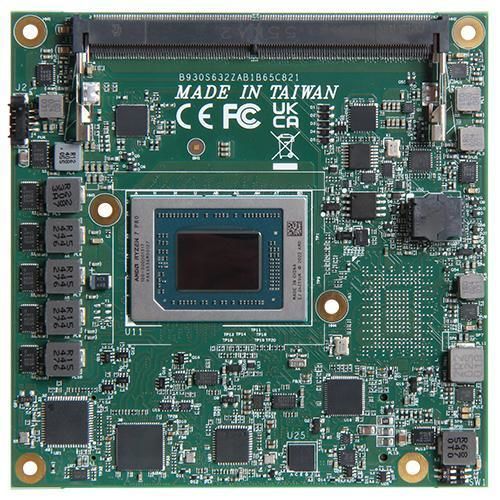

COM Express Compact computer-on-module PCOM-B65C

SO-DIMMAMD Ryzen™ EmbeddedHDMI

Product Overview
COM Express Type 6 Compact-size computer-on-module PCOM-B65C with AMD Ryzen™ Embedded 8000 family support. Designed for embedded and industrial applications requiring high CPU/GPU performance, extensive PCIe lanes and flexible display and storage connectivity.

Features

• AMD Ryzen™ Embedded 8000 Series
• Up to 8 Zen 4 cores and RDNA 3 graphics (WGPs vary by SKU)
• 2x DDR5-5600 SO-DIMM (up to 96 GB), ECC supported
• PCIe Gen4: 1x x8, 1x x2, 6x x1; multiple USB 3.2 Gen2 ports
• 4x USB 3.2 Gen2, 2x SATA III, 3x DDI, eDP/LVDS, VGA; optional onboard NVMe SSD up to 1 TB

Form Factor
COM Express Type 6 Compact Size (95 mm x 95 mm)

General
CPU (examples): 8845HS | 8840U | 8645HS | 8640U
Cores/Threads: 8C/16T | 8C/16T | 6C/12T | 6C/12T
Frequencies: base and turbo vary by SKU (turbo up to ~5.1 GHz typ.)
Cache: varies by SKU (typ. 6–18 MB)
TDP: selectable SKUs (typ. 28 W – 45 W)
Graphics: RDNA3 integrated (WGP count varies by SKU)
Memory: 2 x DDR5 SO-DIMM up to 96 GB 5600 MT/s (ECC supported)
BIOS: AMI uEFI BIOS
Operating temperature: 0 °C to 60 °C

I/O Interface
SATA: 2 x SATA III (default)
USB: up to 4 x USB 3.2 Gen2 plus USB 2.0 lines (8x USB 2.0 default)
Ethernet: 1 x 1 GbE LAN (default, e.g., Intel® I210AT)
PCIe: 1 x Gen4 x8, 1 x Gen4 x2, 6 x Gen4 x1 (default)
Storage: NVMe support (shared with SATA), optional onboard NVMe SSD up to 1 TB
Legacy I/O: GPIO, I2C, SMBus, UART(s)
Security: discrete TPM 2.0
Display: eDP up to HBR3 3840×2160@120Hz, LVDS option, DDI (HDMI® 2.1), VGA (shared)

ME / Environment
Dimensions: 95 mm x 95 mm (3.74” x 3.74”)
Operating temperature: 0 °C ~ 60 °C (32 °F ~ 140 °F)
Storage temperature: -40 °C ~ 85 °C (-40 °F ~ 185 °F)
Certifications: CE / FCC Class A
Supported OS: Windows 11, Ubuntu 24.04
Special features: optional onboard NVMe, Out-of-Band (OOB) management, discrete TPM 2.0, PET/RPET options

Ordering Guide (examples)
PCOM-B65C-8845HS / P/N AB1-3T97 — Type 6 Module
PCOM-B65C-8840U / P/N AB1-3T96 — Type 6 Module
PCOM-B65C-8645HS / P/N AB1-3U89 — Type 6 Module
PCOM-B65C-8640U / P/N AB1-3U88 — Type 6 Module

Technical specifications

• Model: PCOM-B65C
• Form factor: COM Express Type 6 Compact (95 x 95 mm)
• Processor: AMD Ryzen™ Embedded 8000 Series (SKUs listed)
• Memory: 2 x DDR5 SO-DIMM, up to 96 GB, 5600 MT/s, ECC supported
• Graphics: Integrated RDNA3; DDI/HDMI 2.1, eDP, LVDS, VGA
• Storage: 2 x SATA III, NVMe support (shared with SATA), optional NVMe SSD onboard up to 1 TB
• PCIe: 1x Gen4 x8, 1x Gen4 x2, 6x Gen4 x1
• USB: up to 4x USB 3.2 Gen2 plus USB 2.0
• Ethernet: 1 x 1 GbE (default)
• Security: discrete TPM 2.0
• Legacy I/O: GPIO, I2C, SMBus, UART
• Management: Out-of-Band (OOB) management support
• Operating temperature: 0 ~ 60 °C
• Storage temperature: -40 ~ 85 °C
• Power/TDP: SKU dependent (e.g., 28 W, 45 W)
• BIOS: AMI uEFI BIOS
• OS support: Windows 11, Ubuntu 24.04
• Certifications: CE / FCC Class A
