Automatic sorter

capfor lidcapsule

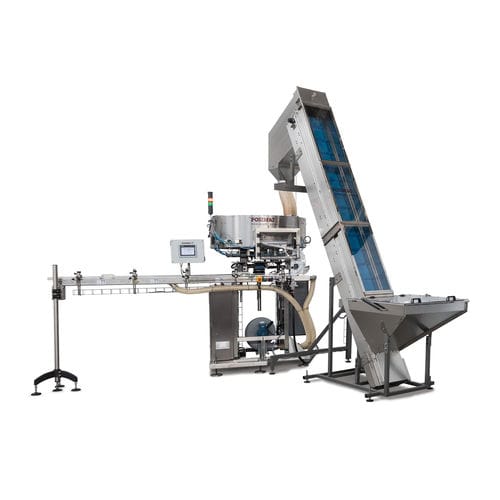

After 40 years of Leadership in unscrambling and handling of plastic bottles, POSIMAT has launched a line of cap sorters for all types of caps. Our cap sorters take bulk cap loads, orientate them into the desired position and, in a predefined manner, move them onto the next step of the production chain. POSIMAT has developed a wide range of options to offer the best solution for each type of cap and production system. WATERFALL CAP SORTER The caps are loaded directly into the elevator hopper. The caps are elevated via the flights on the belt and the space between them sorts the caps according to their orientation; those not oriented correctly fall back into the hopper. The caps, now correctly oriented, are removed at the top of the elevator by means of blowers or mechanical detectors. They are then transported toward a ramp and, subsequently, to an accumulation chute. This type of unscrambler is ideal for high production volumes and suitable for caps for which the height is less than the base or diameter. The inclusion of a rolling device allows the orientation of asymmetric caps. WATERFALL CAP SORTER WITH CAVITIES The elevator belt features flights with cavities into which the spherical part of the cap is positioned. They are turned in the upper section of the elevator as the belt rotates and are orientated within an impulse air conveyor that extracts them from the elevator. This type of unscrambler is ideal for high production volumes and suitable for spherical caps.
