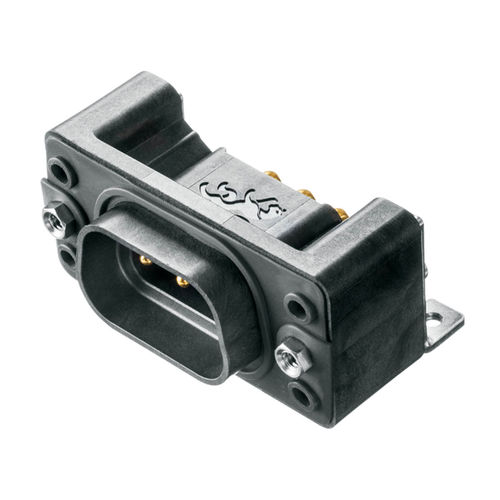

Hybrid connector PA SeriesPCBrectangularfemale
Add to favorites
Compare this product
Characteristics
- Type
- hybrid
- Format
- PCB
- Shape
- rectangular
- Connection type
- female, male
- Product applications
- for industrial applications
- Protection class
- IP65, IP67, IP68, IP69K
- Other characteristics
- waterproof, rugged, high-power
- Primary current
35 A, 45 A, 225 A, 275 A
- Voltage
1,600 V
Description
The PA series IP65/IP67/IP68/IP69K connector offers a multiplicity of connector features, which makes it a first choice for demanding rail, earthmoving, battery and related applications. It features operating temperatures up to 200ºC and is UV, shock & vibration, and salt spray protected.
RUGGEDIZED IP65/IP67/IP68/IP69K WATERPROOF
■Designed for use in rail, earth moving, battery and related applications
■Meets EN45545-2 HL3 (R22/R23) requirements
The Panther family of products, consisting of the PA Series and the PB Series, are rugged, waterproof connectors built for demanding applications. When your project calls for high power, shock and vibration resistance, or needs to meet fire, smoke and toxicity equirements for passenger applications, the Panther family can meet your requirements.
The connectors can be used reliably in operating temperatures up to 200°C and are rated up to IP69. Trust the Panther family of connectors to deliver a reliable connection in any harsh environment.
Catalogs
PANTHER
12 Pages
