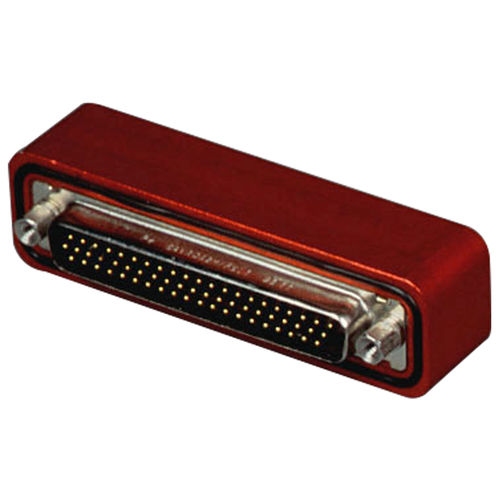

Hermetic connector SAVAC Series

electrical power supplyRFcoaxial

The SAVAC series is part of the Hermetic connector family of feedthroughs for vacuum applications. SAVAC is a smaller connector than XAVAC with two retention screws. SAVAC® Series Connectors are D-Subminiature feedthroughs for SPACE or INDUSTRIAL vacuum applications. Both sides contain two threaded mounting holes (female jackscrews) and a o-ring groove. These redundant features allow either side of the connector to be mounted toward the vacuum, giving the customer the ultimate in flexibility. The type of contacts is according to the customer request: with normal density insulators 9, 15, 25, 37, and 50 contacts (AWG20): Male/Female, Male/Male, or Female/Female. With high density insulators: 15, 26, 44, 62, 78 and 104 contacts (AWG22): Male/Female. With mixed contact combinations (Power, Coaxial, and Signal contacts): Male/Female.
