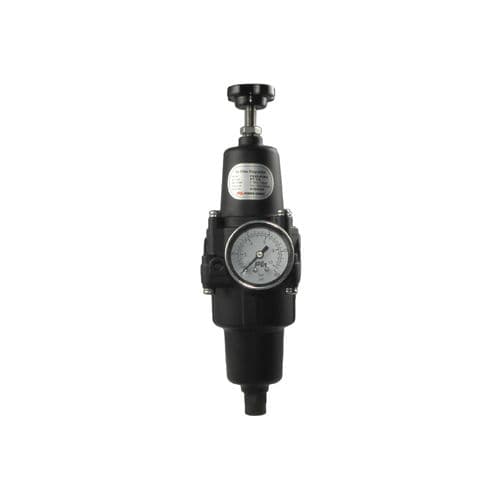

Air filter-regulator FR2 series
stainless steelaluminumautomatic

air filter-regulator
air filter-regulator
air filter-regulator
air filter-regulator
air filter-regulator
air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Characteristics

Designed for
air
Material
stainless steel, aluminum
Other characteristics
automatic, with differential pressure measurement, rugged
Filtration size

5 µm

Operating pressure

Max.: 15 bar (217.557 psi)

Min.: 0 bar (0 psi)

Fluid temperature

Max.: 70 °C (158 °F)

Min.: -20 °C (-4 °F)

Description

Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators Main features Rugged aluminum die-cast housing Optional stainless steel 316 housing Stable setting pressure High capacity with 5 micron filter Self-relief function to balance output and setting pressures High flow capacity Options 316 body Automatic drain Introduction Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators Features - Rugged aluminum die-cast housing - Excellent tability and rpeatability - Stable setting pressure - High capacity with 5 micron filter - Self-relief function to balance output and setting pressures - High flow capacity Specifications Model - FR20 - FR21 Port Size - PT(Rc) 1/4 , NPT 1/4 - NPT 1/4 Fluid - AIR Output Pressure Range - 0 - 4 bar (60 psi) / 0 - 8 bar (120 psi) Max. Supply Pressure - Max. 15 bar (225 psi) Operating and Fluid Temperature - -20 - +70℃ Supply Air - Filtered compressed, dry and non oiled air Gauge Port Size - PT (Rc) 1/8 Filteration - 5 micon
