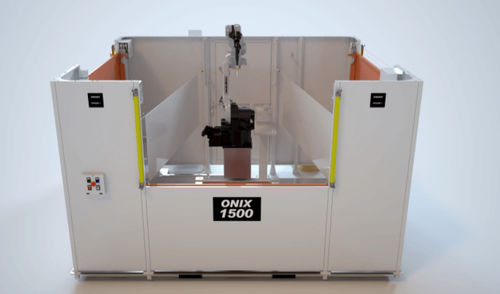

Robotic welding cell ONIX 1500

for large partscompact

• Compact equipment, easy to transport and move around the factory; • It has three fixed tables in a reduced usable area/floor space, which makes the equipment highly productive with space optimization; • Indicated for larger pieces that require agility in the welding process; • Pneumatic hatch that facilitates the loading and unloading of parts with an overhead crane; • 100% use of tables; • Two ion protection barriers for operator safety; • Five year-warranty on the robot; • TAWERS System – unique to Panasonic, fully integrates the power source and controller. TECHNICAL SPECIFICATIONS: Robot model: TM 1800 Panasonic Workstations: 03 Welding area: 750 x 1500mm Overall cell size: *C: 3400 L: 2880 A: 2120 AT: 1000 AS: 900mm Cargo capacity per station: 1000 KG Technical Standards NR10, NR12 e NR 17
